Butlr provides occupancy sensing devices that can be used to track space utilization. The Butlr connector allows you to connect your Butlr devices to the Mapped graph, giving you access to occupancy and traffic count data.

Use Cases

• Monitor occupancy and traffic patterns across floors, rooms, and sub-room zones
• Reuse existing Mapped spaces while layering Butlr sensor coverage on top
• Analyze entry and exit counts for traffic-enabled rooms and zones

Configuration

Auth Requirements

Contact [email protected] in order to retrieve the ID and Secret.

Field	Required	Description	Where to Find
Client ID	Yes	OAuth client identifier for the Butlr API	Butlr customer or developer portal
Client Secret	Yes	OAuth client secret for the Butlr API	Generated with the client ID

Place Mappings

The mapping step loads Butlr buildings, floors, and rooms. Each row represents one room mapping and can optionally include sub-building information and space codes for matching existing spaces.

Field	Required	Description
Building Name	Yes	Building name from Butlr
Building Site ID	Yes	Building/site identifier from Butlr
Building Address	Yes	Building address carried into the mapped building
Sub-building Name	No	Optional subdivision for wings or towers
Sub-building Code	No	Optional short code
Floor Ref ID	Yes	Butlr floor ID
Floor Name	Yes	Floor display name
Floor Level	Yes	Numeric floor level
Space Ref ID	Yes	Combined floor/room reference used by the connector
Space Name	Yes	Room display name
Space Code	No	External code used when matching existing spaces
Space Context	No	Read-only Butlr room metadata such as customID

Advanced Options

Option	Default	Description
Traffic Sensor Drift Correction	FALSE	Enables a dedicated traffic correction routine that runs hourly and only processes data during the 09:00 UTC correction window
Add Occupancy Zones	Mode-dependent	In custom mode, controls whether Butlr zones become child occupancy zones in the graph
Poll Settle Delay Minutes	0	Delays the effective query window by up to 10 minutes so Butlr data can settle before it is fetched
Simple Traffic Polling	TRUE	Replaces normal entry/exit polling with a day-to-date total routine for traffic counts

Mapped Concepts

API to Mapped Entities

Butlr concept	Mapped entity	exactType	Relationships
Mapped building/floor hierarchy	Building / Floor	Building / Floor	Place mapping establishes the parent hierarchy
Butlr room (materialized mode)	Space	Space	hasPart from floor
Butlr zone	Zone	OccupancyZone	hasPart from the mapped room/space
Virtual room zone	Zone	OccupancyZone	hasPart from the mapped existing space
Butlr sensor	Thing	OccupancySensingDevice	hasLocation to the mapped space and serves any created occupancy zone

API to Mapped Points

Butlr data	Point location	exactType	Datatype	Unit	Description
Floor occupancy report	Floor	OccupancyCountSensor	DOUBLE	NUM	Floor-level occupancy total
Room occupancy report	Space in default/custom mode, virtual zone in willow mode	OccupancyCountSensor	DOUBLE	NUM	Occupancy value for the mapped room
Room traffic report	Space	OccupancyCountSensor	DOUBLE	NUM	Traffic count for rooms with traffic-capable sensors
Room entry count	Space in default/custom mode, virtual zone in willow mode	OccupancyCountSensor	DOUBLE	NUM	Entry count derived from traffic data
Room exit count	Space in default/custom mode, virtual zone in willow mode	OccupancyCountSensor	DOUBLE	NUM	Exit count derived from traffic data
Zone occupancy report	Butlr occupancy zone	OccupancyCountSensor	DOUBLE	NUM	Occupancy for each provisioned Butlr zone
Zone entry/exit count	Butlr occupancy zone	OccupancyCountSensor	DOUBLE	NUM	Entry and exit counts for traffic-enabled zones

The main poll runs every minute. When drift correction is enabled, a second hourly poll checks whether it is in the 09:00 UTC correction window before requesting traffic correction data.

Note: Presence sensors have been deprecated.

Sample Code

Query Occupancy Zones

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
{
  zones(filter: {connectedDataSourceId: {eq: "your-connector-Id"}}) {
    id
    name
    exactType
    mappingKey
    isPartOf {
      id
      name
      exactType
    }
    hasPoint {
      id
      name
      exactType
      mappingKey
    }
    isServedBy {
      ... on Thing {
        id
        name
        exactType
      }
    }
  }
}

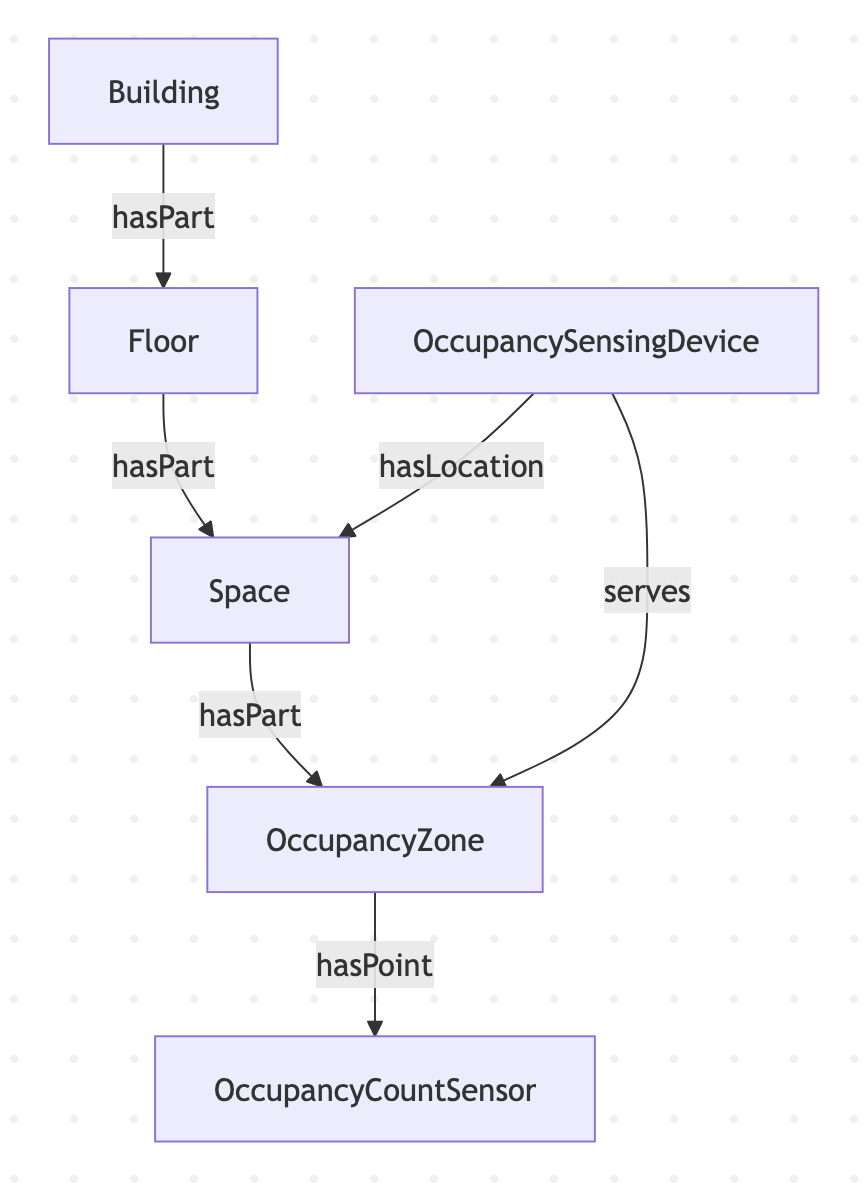

Graph Diagram
