Aruba Central Source Legacy

The Aruba Central Source Legacy connector integrates with Aruba Central classic deployments, which pre-date GreenLake/HPE SSO. It ingests two data streams into the Mapped platform:

• Floor Occupancy: WiFi client counts per floor from the VisualRF API, providing a proxy for real-time space utilization.
• Device Status: Online/offline state of network infrastructure (switches, access points, gateways), cross-referenced against a customer-supplied serial number whitelist. access points, switches, and gateways. Optionally, it supports real-time webhook notifications for occupancy alerts.

Use Cases

• Space utilization analytics: Track floor-level occupancy trends using WiFi client counts as a proxy, enabling data-driven space planning and real estate optimization.
• Critical infrastructure monitoring: Detect when key network devices go offline and correlate device availability with building location for faster incident response.
• Operational dashboards: Combine occupancy and device health data with other Mapped sources for unified building operations visibility.

Configuration

Auth Requirements

The connector uses the legacy Aruba Central 3-step OAuth2 authorization_code flow (username + password + client credentials). You can find these details in the Aruba Central Portal.

Field	Required	Description	Where to Find
Base URL	Yes	Aruba Central API gateway URL	Select from dropdown — choose the gateway that matches your Aruba Central region
Customer ID	Yes	Aruba Central customer/tenant ID	Aruba Central → Account Home → Customer ID
Username	Yes	Aruba Central login email	Your Aruba Central admin account email
Password	Yes	Aruba Central login password	Your Aruba Central admin account password
Client ID	Yes	OAuth2 application client ID	Aruba Central → API Gateway → My Apps & Tokens → select your app
Client Secret	Yes	OAuth2 application client secret	Same location as Client ID
Enable Anonymization	No	Hash MAC addresses for privacy (recommended)	Toggle in auth step; defaults to Yes

Note: The full login flow is rate-limited to 3 attempts per hour per Client ID. The connector automatically uses refresh tokens between polls to avoid hitting this limit.

Place Mappings: Occupancy

Source entities are auto-discovered from the VisualRF campus → building → floor hierarchy.

Field	Required	Auto-Populated	Description
building.siteId	Yes	No	The Site in your organization
building.name	Yes	Yes	VisualRF building name
building.address	Yes	No	Physical address (user-entered)
building.refId	Yes	Yes	VisualRF building ID
floor.name	Yes	Yes	VisualRF floor name
floor.level	Yes	Yes	Numeric floor level
floor.refId	Yes (unique)	Yes	VisualRF floor ID

Device Status: Serial Number Upload & Mapping **

The device status stream uses a two-part configuration:

1: Upload: A .txt file containing device serial numbers (one per line).

2: Mapping table: Each uploaded serial number appears as a row. The user assigns a building (from discovered Aruba Central monitoring sites), device type, and optional location details.

Field	Required	Description
Serial Number	Yes	Pre-filled from uploaded file (read-only)
Device Type	Yes	SWITCH, IAP, or GATEWAY
Building (Site)	Yes	Select from discovered Aruba Central sites
Building Address	No	Physical address
Site ID	Yes	Auto-filled when a site is selected
Floor Name	No	Optional floor assignment
Floor Level	No	Numeric floor level
Space Name	No	Optional space assignment
Space Code	No	Optional space code

Advanced Options

Option	Default	Description
Poll Occupancy	Enabled	Enable or disable the floor occupancy polling stream
Poll Device Status	Enabled	Enable or disable the device status polling stream

Mapped Concepts

Occupancy Stream: API to Mapped Entities

The VisualRF API hierarchy is mapped to the Mapped graph as follows:

Aruba Central (VisualRF)	Mapped Entity	exactType	Relationship
VisualRF Building	Building	Building	Top-level place
VisualRF Floor	Floor	Floor	Building → hasPart → Floor
Floor client count	Point	Occupancy_Count_Sensor	Floor → hasPoint → Occupancy_Count_Sensor

Each building and floor carries an external identity URN for traceability:

• Building: urn:arubacentral:legacy:visualrf:building🆔<buildingId>
• Floor: urn:arubacentral:legacy:visualrf:floor🆔<floorId>

Device Status Stream: API to Mapped Entities

Each uploaded device serial number is provisioned as a typed network device:

Aruba Central	Mapped Entity	exactType	Relationship
Monitoring Site	Building	Building	Top-level place for the site
Switch (serial)	Thing	Switch	Building → isLocationOf → Switch
Access Point (serial)	Thing	Wireless_Access_Point	Building → isLocationOf → Wireless_Access_Point
Gateway (serial)	Thing	Networked_Device	Building → isLocationOf → Networked_Device
Device online/offline	Point	On_Off_Status	Thing → hasPoint → On_Off_Status

Each device carries an org-scoped external identity with its serial number, and a building identity URN:

• Building: urn:arubacentral:legacy:monitoring:site🆔<siteId>

When optional floor and space information is provided, the graph includes:

• Building → hasPart → Floor → isLocationOf → Thing
• Floor → hasPart → Space → isLocationOf → Thing

API to Mapped Points

Point	exactType	Datatype	Unit	Description
Occupancy Count	Connected_Devices_Count_Sensor	INT	NUM	Number of WiFi clients detected on a floor. Polled every 30 minutes from the VisualRF client_location_count field.
Device Status	On_Off_Status	ENUM	NUM	Online/offline status of a network device. 1 = Online, 0 = Offline. Determined by cross-referencing the device's serial number against the Aruba Central offline devices list.

Device Status value map:

Value	Meaning
0	Offline — device serial number was found in the Aruba Central offline devices list
1	Online — device serial number was NOT found in the offline devices list

Polling interval: 30 minutes for both streams.

Sample Code

Note you'll need the connectorId of your Aruba Central Source connector. You can find this in the Mapped Console grid view under the Connectors tab.

Query all buildings and their floors with occupancy points

{
  buildings {
    id
    name
    floors {
      id
      name
      level
      points (filter:{connectedDataSourceId:{eq:"your-connector-Id"}}) {
        id
        name
        exactType
        mappingKey
      }
    }
  }
}

Query device status things with their locations and points

{
  things(filter: { connectedDataSourceId: { eq: "your-connector-Id" } }) {
	    id
	    name
	    exactType
	    hasLocation {
	      id
	      name
	      exactType
	    }
	    hasPoint {
	      id
	      name
	      exactType
	    }
	  }
}

Get the latest occupancy count

{
  points(filter: {
	    connectedDataSourceId: { eq: "your-connector-Id" }, and: {
	    exactType: { eq: "Connected_Devices_Count_Sensor" }}
	  }) {
	    id
	    name
	    datatype
	    unit {
	      id
	    }
	    series(latest: true) {
	      timestamp
	      value {
	        float64Value
	      }
	    }
	  }
}

Get occupancy timeseries for a time range (raw values)

{
  points(filter: {
	    connectedDataSourceId: { eq: "your-connector-Id" }, and: {
	    exactType: { eq: "Connected_Devices_Count_Sensor" }}
	  }) {
	    id
	    name
	    series(
	      startTime: "2025-10-04T12:00"
	      endTime: "2025-10-05"
	    ) {
	      timestamp
	      value {
	        float64Value
	      }
	    }
	  }
}

Get the latest device status for all monitored devices

{
  points(filter: {
	    connectedDataSourceId: { eq: "CONJrzxaWrbDi7amUGzVcLRR" }, and: {
	    exactType: { eq: "On_Off_Status" }}
	  }) {
	    id
	    name
	    series(latest:true) {
	      timestamp
	      value {
	        float64Value
	      }
	    }
	  }
}

Get device status history for a time range

{
  points(filter: {
    connectedDataSourceId: { eq: "CONJrzxaWrbDi7amUGzVcLRR" }, and: {
	    exactType: { eq: "On_Off_Status" }}
		  }) {
		    id
		    name
		    series(
		      startTime:"2025-10-06",
		      endTime:"2025-10-07"
		    ) {
		      timestamp
		      value {
		        float64Value
		      }
	    }
  }
}

Graph Diagrams

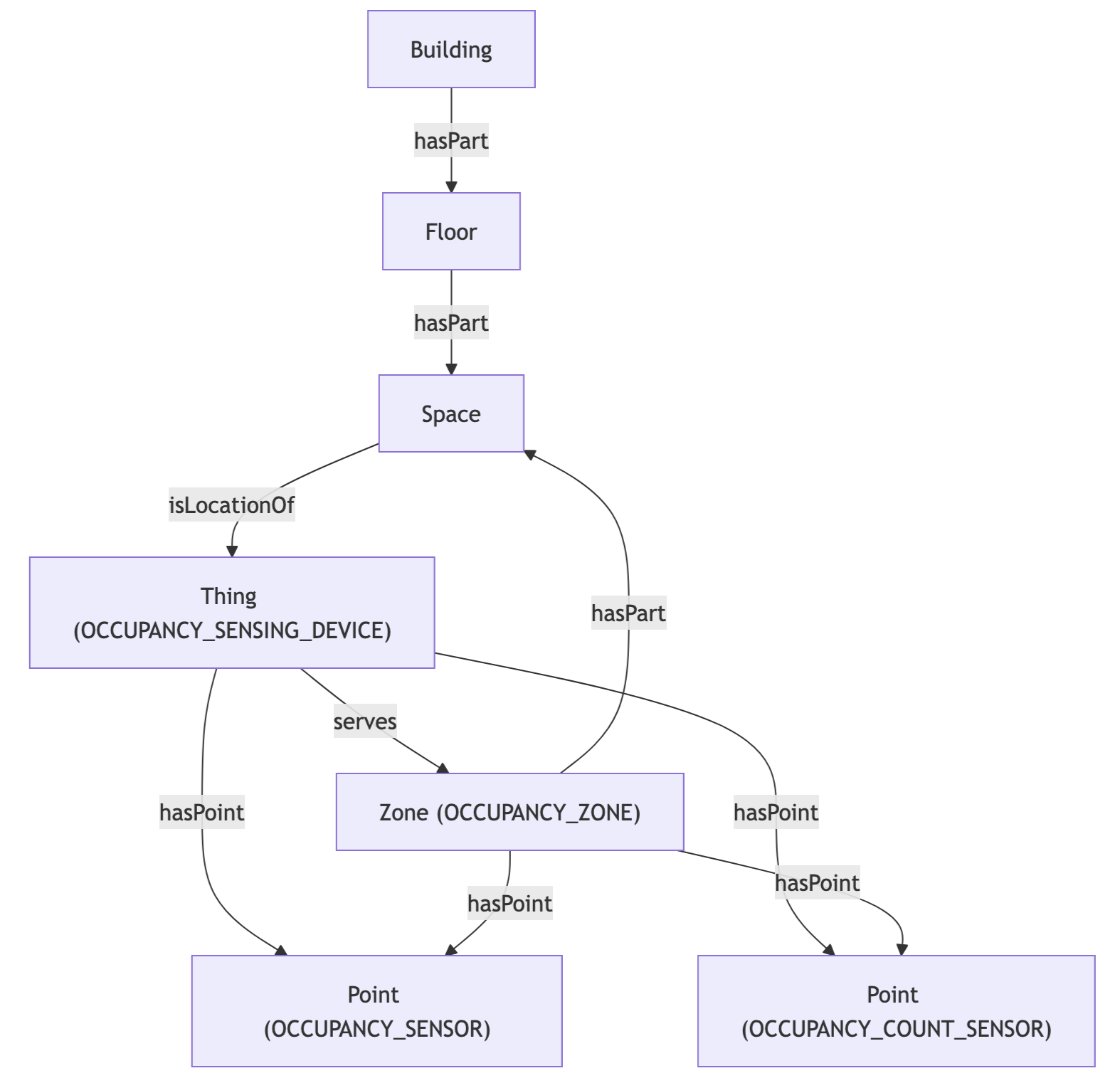

Occupancy
