Disruptive Technologies

This connector integrates with the Disruptive Technologies IoT sensor platform. Disruptive Technologies produces small, wireless sensors for environmental monitoring and space utilization — including temperature, humidity, CO₂, motion, and desk occupancy sensors. The connector ingests sensor data into the Mapped Graph, creating device entities with associated timeseries points that represent real-time and historical environmental and occupancy measurements.

Use Cases

• Environmental monitoring: Track temperature, humidity, and CO₂ levels across buildings and spaces to ensure occupant comfort and regulatory compliance.
• Space utilization: Monitor desk occupancy and motion activity to understand how spaces are used and optimize real estate decisions.
• Device health oversight: Monitor sensor battery status, network signal strength, and online/offline connectivity to proactively manage your sensor fleet.

Configuration

Auth Requirements

The connector supports two authentication methods. Choose the one that matches your Disruptive Technologies account setup.

Method	Fields	Where to Find
OAuth2 (recommended)	Service Account Email, Account Key ID, Account Key Secret	In the DT Studio under your project's Service Accounts section. Create a Service Account, then create a Key to obtain the Key ID and Secret.
Basic Auth	Username (Key ID), Password (Secret)	Same location as OAuth2 — the Key ID is the username and the Key Secret is the password.

Runtime Mode

Mode	Description
Webhook (Real-time)	Default. Creates a DT Data Connector (HTTP_PUSH) for each project to receive real-time sensor events. Poll supplements webhooks with network signal strength data.
Polling (Scheduled)	Fetches full event history for all mapped devices every 10 minutes. No remote webhook is created.
#

Advanced Options

Option	Default	Description
Materialize Space as Zone	FALSE	When enabled, DT Spaces are represented as OccupancyZone entities in the Graph instead of Space.
Review the Graph diagrams below for examples of Materialize Space as Zone disabled and enabled.

Place Mapping

The connector uses a mapping table to associate DT sensors with locations in the Mapped graph. When you select one or more DT projects, the connector fetches all supported devices and presents them for mapping.

Field	Required	Description
building.siteId	Yes	The Mapped site ID for the building
building.address	Yes	Building address
building.name	Yes	Building display name
subBuilding.name	No	Sub-building name (if applicable)
subBuilding.code	No	Sub-building code
floor.name	Yes	Floor name
floor.level	Yes	Floor level number (0 = ground, negative = basement)
space.name	No	Space name (if omitted, device is placed at the floor level)
space.code	No	Space code
thing.refId	Yes (unique)	The DT device ID — auto-populated from the API
thing.name	Yes	Device display name — auto-populated as {type} - {deviceId}
thing.context	No (editable)	Device metadata including type and labels from the DT API

Mapped Concepts

API to Mapped Entities

DT Concept	Mapped Entity	exactType	Description
DT Project	Building	Building	Each DT project maps to a building in the Mapped graph
DT Device (all types)	SensorEquipment	SensorEquipment	Each sensor device becomes a SensorEquipment entity
Space	OccupancyZone	OccupancyZone	Motion and desk occupancy sensors create an OccupancyZone that is part of the mapped Space or Floor

API to Mapped Points

DT Event Type	Point Name	exactType	Datatype	Unit	Value Description
temperature	Temperature	TemperatureSensor	DOUBLE	DEG_C	Temperature in degrees Celsius
humidity	Humidity	RelativeHumiditySensor	DOUBLE	PERCENT_RH	Relative humidity percentage
co2	CO2	CO2LevelSensor	DOUBLE	PPM	CO₂ concentration in parts per million
motion	Motion	OccupancySensor	ENUM	NUM	0 = NO_MOTION_DETECTED, 1 = MOTION_DETECTED
deskOccupancy	Desk Occupancy	OccupancySensor	ENUM	NUM	0 = NOT_OCCUPIED, 1 = OCCUPIED
batteryStatus	Battery Status	BatteryStatus	DOUBLE	PERCENT	Battery level percentage (all device types)
networkStatus	Network Signal Strength	CommunicationSignalStrengthStatus	DOUBLE	PERCENT	Network signal strength percentage (all device types)

Relationships:

• Each SensorEquipment hasLocation → the Space, Floor, or OccupancyZone where it is installed
• For motion and desk occupancy sensors, the SensorEquipment serves → an OccupancyZone, which isPartOf → the parent Space or Floor
• Each SensorEquipment hasPoint → its timeseries Point entities (main sensor point + battery + network signal)
• Each SensorEquipment and all its Points share a single Heartbeat via hasHeartbeat

Sample Code

Query latest sensor readings

{
  points(filter: { connectedDataSourceId: { eq: "your-connector-Id" } }) {
	    id
	    name
	    exactType
	    datatype
	    mappingKey
	    unit {
	      id
	    }
	    series(latest: true) {
	      timestamp
	      value {
	        float64Value
	      }
	    }
	  }
}

Query Occupancy Zones and their sensors

{
  zones(
	    filter: {
	      connectedDataSourceId: { eq: "your-connector-Id" }
	      exactType: { eq: "Occupancy_Zone" }
	    }
	  ) {
	    id
	    name
	    exactType
	    mappingKey
	    isServedBy {
	      id
	      name
	      hasPoint {
	        id
	        name
	        exactType
	        mappingKey
	      }
	    }
	    isPartOf {
	      id
	      name
	      exactType
	    }
	  }
}

Query sensor devices and their locations

{
  things(filter: { connectedDataSourceId: { eq: "your-connector-Id" } }) {
	    id
	    name
	    exactType
	    mappingKey
	    hasLocation {
	      id
	      name
	      exactType
	    }
	    hasPoint {
	      id
	      name
	      exactType
	      mappingKey
	      datatype
	      unit {
	        id
	      }
	    }
	  }
}

Graph Diagrams

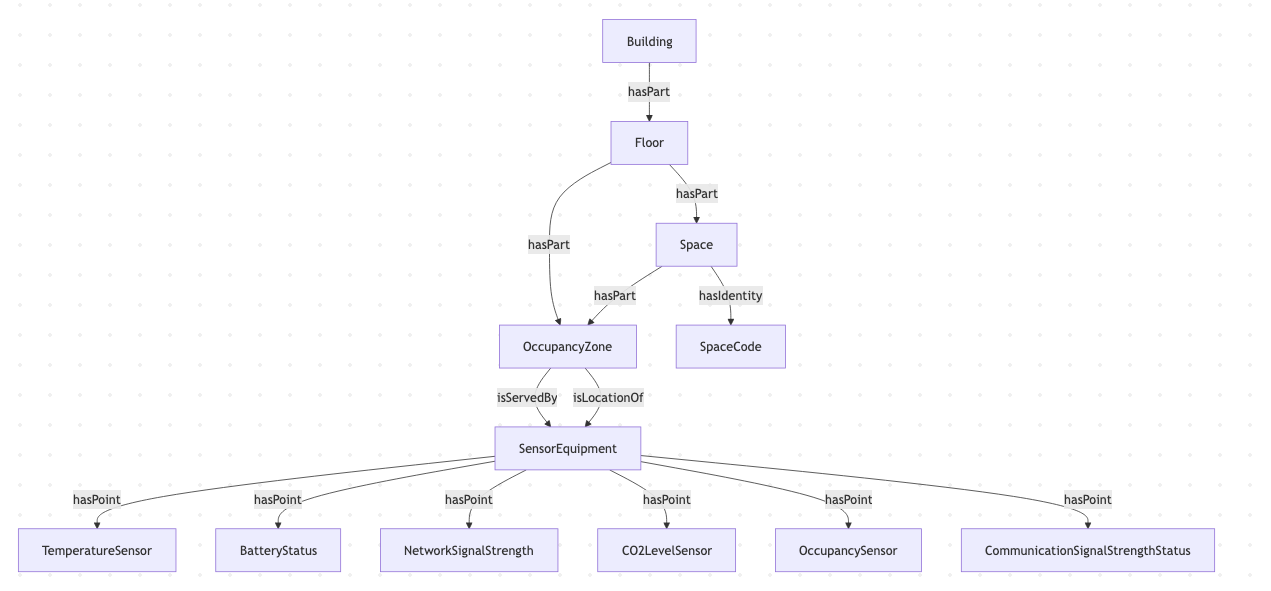

Default - DT Space as Space

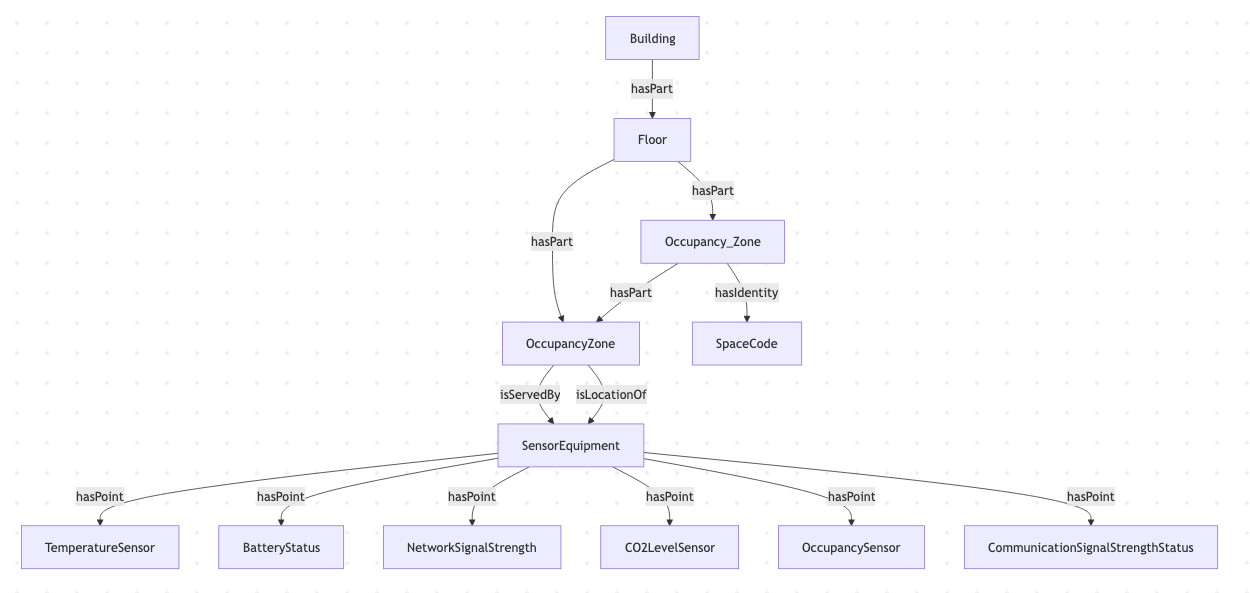

DT Spaces Materialized as Zones

With Materialize Spaces as Zones set to TRUE, the DT Space is rendered as a Zone.
