WebTMA Destination

The WebTMA Destination connector sends Work Orders and Service Requests from the Mapped graph into WebTMA. It's designed for organizations that use Mapped as the operational hub and want selected maintenance records to be created or updated in WebTMA with the right building context, status mappings, and repair center assignments.

Use Cases

• Route Mapped work into WebTMA: Push Work Orders and Service Requests created in Mapped or another source connector into WebTMA for execution.
• Standardize cross-system dispatch: Normalize records in Mapped, then translate statuses, priorities, and work types into WebTMA-specific values.
• Backfill historical records: Send previously created Mapped Work Orders or Service Requests to WebTMA by date range or by specific graph IDs.

Configuration

Auth Requirements

Provide the WebTMA credentials used for write access.

Field	Required	Description	Where to Find
Client Name	Yes	Your WebTMA client or tenant name	Provided by your WebTMA administrator
Username	Yes	WebTMA username with permission to create and update records	Provided by your WebTMA administrator
Password	Yes	Password for the WebTMA user	Provided by your WebTMA administrator

You can also import these settings from an existing WebTMA Source connector in the same organization.

Place Mappings

This connector uses the Building Selection tab to scope which Mapped records are allowed to sync to WebTMA. Select one or more WebTMA Buildings for this connector's scope, and only Work Orders and Service Requests associated with those mapped Buildings will be eligible for sync.

If a Mapped Work Order or Service Request does not contain matching WebTMA location identities for a Building, Floor, or Space, the connector skips it for syncing.

Work Order Mappings

Complete these enum mappings to ensure Work Orders and Service Requests sync correctly.

Mapping	Required to sync Work Orders	Description
Work Order Status	Yes	Maps Mapped jobStatus values to WebTMA status IDs
Work Order Priority	Yes	Maps Mapped jobPriority values to WebTMA priority IDs
Work Order Type	Yes	Maps Mapped jobType values to WebTMA Work Order type IDs
Work Order Task Type	Recommended	Maps Mapped sector values to WebTMA task IDs when tasks are created
Work Order Repair Center	Yes	Maps hasAssignedGroup.name to a WebTMA repair center

Service Request Mappings

Mapping	Required to sync Service Requests	Description
Service Request Status	Yes	Maps Mapped requestStatus values to WebTMA status IDs
Service Request Repair Center	Yes	Maps isResponsibilityOf.name to a WebTMA repair center
Service Request Type	Yes	Selects the WebTMA request type used when creating Service Requests

For the enum-based mappings above, the UI supports:

• enabling or disabling a mapping set
• choosing a default value
• applying the default only when no explicit mapping is found

Advanced Options

Required step: Open Settings and explicitly enable Work Order Polling and/or Service Request Polling for the record types you want to send to WebTMA. If a toggle is off, that entity type will not sync and backfill for that type is effectively disabled.

Option	Description
Enable Work Order Polling	Sends eligible Mapped Work Orders to WebTMA
Enable Service Request Polling	Sends eligible Mapped Service Requests to WebTMA
Create a "Requested Action" entry for assets associated with Service Requests	Adds related asset details into the WebTMA request body for Service Requests
Use lookback (hours) on connector restart for graph queries	Re-reads a configurable recent window after restart
Import from WebTMA Source connector	Reuses credentials and related settings from an existing source connector
Backfill	Sends historical Work Orders and/or Service Requests by date range or by specific Mapped graph IDs

Mapped Concepts

API to Mapped Entities

Sync direction	Mapped entity involved	What the connector writes back
Mapped → WebTMA Work Order	WorkOrder	WebTMA Work Order identities in identities
Mapped → WebTMA Service Request	ServiceRequest	WebTMA Service Request identities in identities

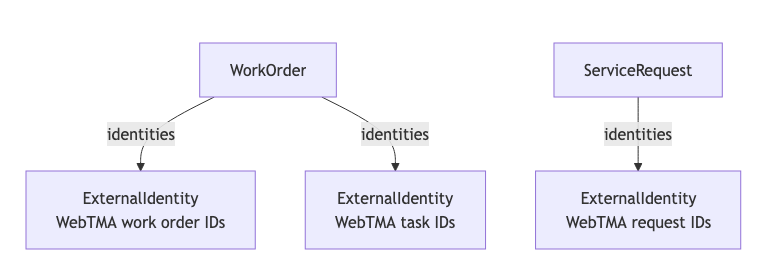

Typical identities added after a successful sync include WebTMA record IDs and record numbers. These identities allow the connector to recognize records it already created and update them instead of creating duplicates.

Requirements for Syncing

• Polling must be enabled under Settings for the applicable entity - Work Orders or Service Requests (or both).
• The Work Order or Service Request must be related to a location which resolves to a Building selected in the config.
• For Work Orders, the following enums must be mapped under Work Order Mappings: Work Order Status, Work Order Priority, Work Order Type, Work Order Task Type, Work Order Repair Center.
• For Service Requests, the following enums must be mapped under Service Request Mappings: Status, Type, Repair Center

Sample Code

Query Work Orders

Read more about querying Work Orders in the Mapped Graph.

{
  workOrders(filter: { connectedDataSourceId:{ eq: "your-connector-Id"}}) {
	    id
	    name
	    exactType
	    mappingKey
	    dateCreated
	    dateUpdated
	    dateClosed
	    jobPriority
	    jobStatus
	    jobType
	    sector
	    description
	    summary
	    hasAssignedGroup {
	      name
	    }
	    isReportedBy {
	      name
	    }
	    hasAssignee {
	      name
	    }
	    isClosedBy {
	      name
	    }
	    isCreatedBy {
	      name
	    }
	    identities {
	      ... on ExternalIdentity {
	        __typename
	        value
	      }
	    }
	    relatesTo {
	      ... on Building {
	        id
	        name
	        exactType
	        identities {
	          ...on ExternalIdentity {
	            __typename
	            value
	          }
	        }
	      }
	      ... on Floor {
	        id
	        name
	        exactType
	        identities {
	          ...on ExternalIdentity {
	            __typename
	            value
	          }
	        }
	      }
	      ... on Space {
	        id
	        name
	        exactType
	        identities {
	          ...on ExternalIdentity {
	            __typename
	            value
	          }
	        }
	      }
	      ... on Thing {
	        id
	        name
	        exactType
	        identities {
	          ...on ExternalIdentity {
	            __typename
	            value
	          }
	        }
	      }
	    }
	  }
}
