WebTMA Source

The WebTMA Source connector imports CMMS data from WebTMA into the Mapped graph. It brings in your location hierarchy, equipment assets, Work Orders, and service requests so operations teams can query maintenance activity alongside Buildings, Spaces, and other connected systems.
Use Cases
- Unified maintenance visibility: View WebTMA work orders and service requests in the same graph as your buildings, spaces, and equipment.
- Asset and location context: Link tickets to mapped buildings, floors, spaces, and equipment for better troubleshooting and reporting.
- Portfolio-wide CMMS analytics: Analyze backlog, priority, request status, and maintenance activity across multiple sites in a consistent graph model.
Configuration
Auth Requirements
Provide the WebTMA credentials used to access your tenant.
| Field | Required | Description | Where to Find |
|---|---|---|---|
| Client Name | Yes | Your WebTMA client or tenant name | Provided by your WebTMA administrator |
| Username | Yes | WebTMA username for API access | Provided by your WebTMA administrator |
| Password | Yes | Password for the WebTMA user | Provided by your WebTMA administrator |
Place Mappings
The connector reads WebTMA areas and builds a location mapping table for the hierarchy it will create in Mapped.
| Mapping Field | Required | Description | Notes |
|---|---|---|---|
| Site ID | Yes | Groups buildings under a site when present | Used to create or associate a Site above the building |
| Building Name | Yes | Building name from WebTMA | Used for the Building entity |
| Building Address | Yes | Building address details | Used when available for building metadata |
| Floor Name | Yes | Floor or level name | Used for the Floor entity name |
| Floor Level | Yes | Numeric floor level | Helps standardize floor ordering with FloorLevelIdentity value |
| Space Name | Yes | Room or area name | Used for the Space entity |
| Space Ref ID | Yes | Unique room or area identifier | Used for identity matching |
| Space Code | Yes | Room number or short code | Useful for room lookup and naming |
Save the mapping step before syncing assets or ticket data. The connector uses these place mappings to relate work orders, service requests, and assets to the correct building, floor, or space.
Asset Type Mapping
WebTMA equipment types are mapped to Mapped exact types for the Thing entities created during asset sync.
| Option | Description |
|---|---|
| Asset Type Mapping | Maps each WebTMA equipment type to a Mapped exact type such as AHU, FAN, PUMP, or a more general THING |
| Asset Sync Building Selection | Lets you choose which mapped buildings should be included when running an asset sync |
Asset syncing is started from the Asset Mappings step after you save the mappings.
Advanced Options
| Option | Description |
|---|---|
| Polling Work Orders | Enables continuous syncing of WebTMA work orders into Mapped |
| Polling Service Requests | Enables continuous syncing of WebTMA service requests into Mapped |
| Backfill | Lets you sync historical work orders and service requests by date range or by specific WebTMA IDs |
| Work order sector field | Where a work order's sector comes from. Task Type (default) reads the task type. Craft and Task Type reads the craft on the work order task and falls back to the task type when no craft is set |
Mapped Concepts
API to Mapped Entities
| WebTMA data | Mapped entity | Exact type | Relationships created |
|---|---|---|---|
| Site/building mapping | Site | SITE | hasPart to buildings |
| Building mapping | Building | BUILDING | isPartOf site, hasPart floors |
| Floor mapping | Floor | FLOOR | isPartOf building, hasPart spaces |
| Area / room mapping | Space | Varies by Mapped place model | isPartOf floor |
| Equipment record | Thing | User-mapped exact type | hasLocation building, floor, or space |
| Equipment model data | DeviceModel | DEVICE_MODEL | Linked from the related Thing |
| Work order | WorkOrder | WORK_ORDER | relatesTo places and equipment, hasAssignedGroup, hasAssignee, isCreatedBy, isClosedBy |
| Service request | ServiceRequest | SERVICE_REQUEST | relatesTo places and equipment, isReportedBy, hasAssignee, isResponsibilityOf |
| Requestor / technician / closer | Person | PERSON | Linked from work orders and service requests |
| Repair center | PeopleGroup | PEOPLE_GROUP | Linked from work orders or service requests; may also hasMember assigned people |
| Work order labor hours and cost | WorkOrderCost | WORK_ORDER_COST | Actual and estimated labor hours and costs, attached to the work order. See Work Order Costs. |
Each synced record also receives WebTMA external identities in the identities field so it can be matched back to its source record.
Work Order Costs
Booked labor hours and costs are read from each WebTMA work order and attached to the work order as an actual and an estimated cost. They are updated every time the work order is polled or backfilled, so open work orders show running totals.
| WebTMA Field | Cost | Value |
|---|---|---|
| Labor hours | Actual | Labor, in hours |
| Material cost | Actual | Material, in USD |
| Labor cost + material cost + other cost + contractor cost | Actual | Total, in USD |
| Estimate hours | Estimated | Labor, in hours |
| Estimate cost | Estimated | Total, in USD |
- The labor value is hours, not dollars. Labor dollars are included in the total.
- Amounts are WebTMA's cost values, not billed charges.
- Values that are empty or 0 are left out, so a work order with nothing booked has no cost. When labor cost is hidden in WebTMA, the hours are still sent and the total covers the remaining costs.
- WebTMA does not always update a work order when labor, parts, or charges are posted against it. Each poll also checks for labor, parts, and charges added or changed since the last poll and refreshes the work orders they belong to.
- WebTMA has no tool cost. Amounts are treated as USD.
Sample Code
Query Work Orders
Read more about querying Work Orders in the Mapped Graph.
{
workOrders(filter: { connectedDataSourceId:{ eq: "your-connector-Id"}}) {
id
name
exactType
mappingKey
dateCreated
dateUpdated
dateClosed
jobPriority
jobStatus
jobType
sector
description
summary
hasAssignedGroup {
name
}
isReportedBy {
name
}
hasAssignee {
name
}
isClosedBy {
name
}
isCreatedBy {
name
}
identities {
... on ExternalIdentity {
__typename
value
}
}
relatesTo {
... on Building {
id
name
exactType
identities {
...on ExternalIdentity {
__typename
value
}
}
}
... on Floor {
id
name
exactType
identities {
...on ExternalIdentity {
__typename
value
}
}
}
... on Space {
id
name
exactType
identities {
...on ExternalIdentity {
__typename
value
}
}
}
... on Thing {
id
name
exactType
identities {
...on ExternalIdentity {
__typename
value
}
}
}
}
}
}

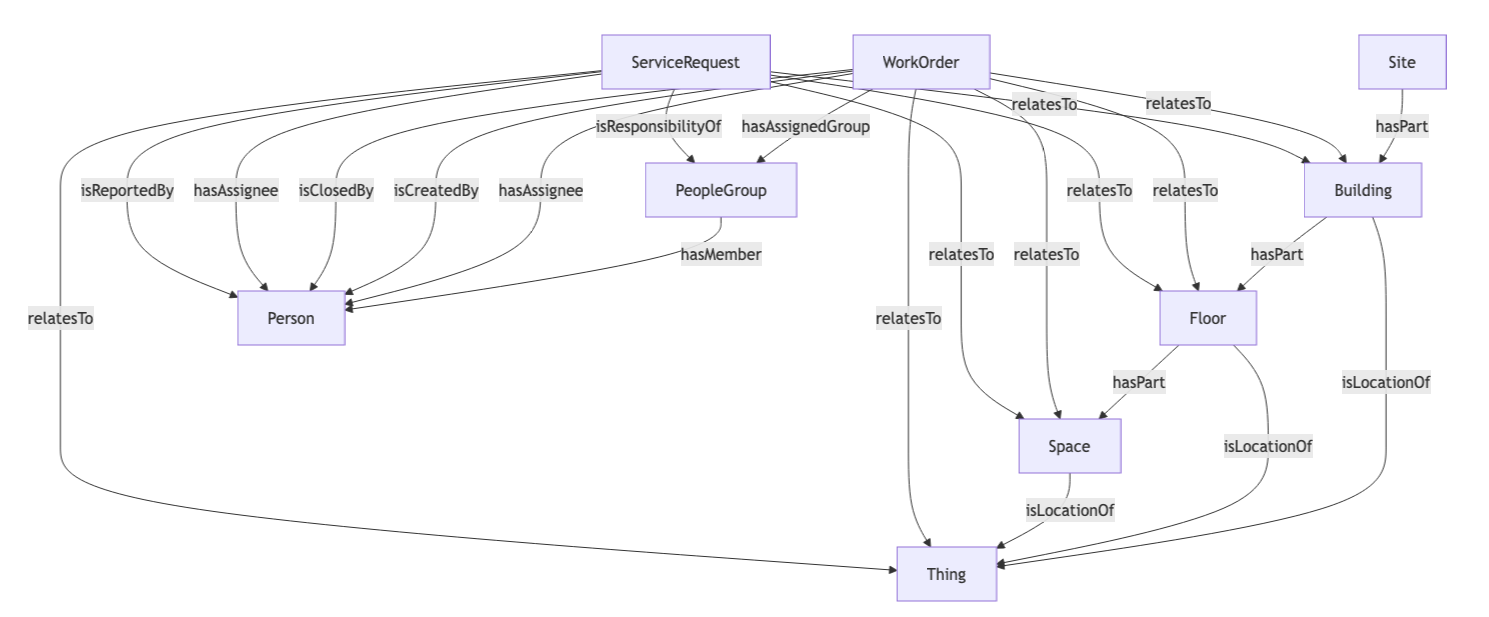

Graph Diagrams
