Entities and Relations in Expert Center

This guide introduces the core concepts of entities and relations in Expert Center, explaining how raw building data transforms into a unified knowledge graph.

Overview

Expert Center processes building data through several stages, creating different types of entities and relationships along the way. Understanding these concepts is essential for effectively using Expert Center to build your knowledge graph.

Source Entities: Your Starting Point

Source Entities are the foundation of your knowledge graph. These are the original entities that exist in your building's data sources (connectors).

Every Source Entity represents something real in your building, such as a:

• control point
• device
• equipment
• space

For example:

1
VAV-101.DMPR_POS

Labeling: Teaching the AI

Raw Source Entities are like unlabeled boxes in a warehouse - you know they exist, but not what they are or how they relate to each other. Expert Center uses a powerful AI-assisted approach to transform this raw data into meaningful building intelligence.

The process works in two stages: first, human experts label a subset of entities to create training examples, then AI learns from these examples to automatically process the rest. This combination of human expertise and AI scalability enables you to build comprehensive knowledge graphs from thousands of data points.

Labeled Source Entities

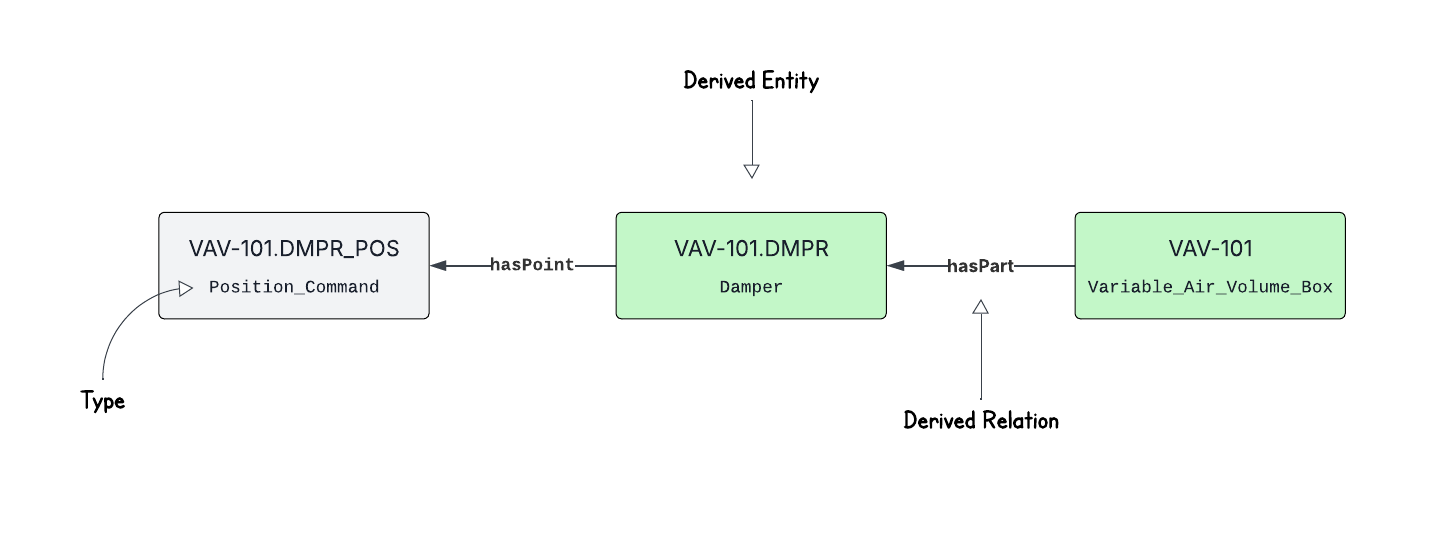

When human experts manually classify Source Entities during the Label step, they become Labeled Source Entities. A Labeled Source Entity contains three key components:

1. Entity Type: The classification of the Source Entity (e.g., "Damper_Position")
2. Derived Entities: New entities extracted from the Source Entity's patterns
3. Derived Relations: Relationships connecting the Source Entity to its Derived Entities

Let's explore each component:

Derived Entities from Labeling

When labeling

1
VAV-101.DMPR_POS

• VAV-101: A Variable Air Volume box
• VAV-101.DMPR: A Damper

These become Derived Entities - entities manually created by experts who understand the building systems.

Derived Relations from Labeling

Experts also establish relationships between the Source Entity and Derived Entities using "SELF" notation:

• Copy

  1
  VAV-101.DMPR hasPoint SELF

  : The damper has this position point
• Copy

  1
  VAV-101 hasPart VAV-101.DMPR

  : VAV-101 contains a damper

These Labeled Derived Relations create the hierarchical structure of the current Source Entity and its Derived Entities.

Inferred Source Entities

After learning from Labeled Source Entities, the AI model automatically processes remaining Source Entities, creating Inferred Source Entities. Like their labeled counterparts, Inferred Source Entities contain:

1. Type: The classification predicted by AI
2. Derived Entities: New entities automatically extracted by AI
3. Derived Relations: Relationships automatically predicted by AI

The model:

• Recognizes patterns from labeled examples
• Applies these patterns to new entities
• Provides confidence scores for predictions
• Scales the labeling process across thousands of entities

For example, after learning from

1
VAV-101.DMPR_POS

1
VAV-102.DMPR_POS

• Infer its type as "Damper_Position"
• Create derived entity "VAV-102"
• Establish the relationship
  Copy

  1
  VAV-102 hasPoint SELF

Unified Entities: Creating a Ground Truth

The final step addresses a common challenge: the same physical equipment often appears differently across various data sources. A single air handler might be:

• Copy

  1
  AHU01

  in the BMS
• Copy

  1
  Air Handler 1

  in mechanical drawings
• Copy

  1
  AC-1

  in maintenance records

Unified Entities solve this by creating a connector-agnostic representation of real-world entities. They:

• Can contain multiple Source/Derived entities from different connectors
• Provide a single identity for each piece of equipment
• Allow users to choose the final name in the knowledge graph

Instead of seeing three different air handlers in your graph, you see one Unified Entity (which you might name "AHU-01") that encompasses all representations.

The Complete Picture

Understanding these concepts helps you see how Expert Center transforms raw building data:

1. Source Entities arrive from your connectors as raw, unclassified data
2. Labeling by human experts creates training examples with types, derived entities, and relations
3. Processing by AI automatically scales this enrichment process across all remaining entities
4. Derived Entities and Relations extract implied equipment and build system hierarchies
5. Unified Entities deduplicate entities across connectors into single real-world representations

The result is a clean, unified knowledge graph that accurately represents your building's systems and their relationships, ready for analytics and operations.

Next Steps

• Learn about the labeling process to create high-quality training data

• Understand inference and processing to scale your knowledge graph

• Explore unification to merge entities across connectors
