Juniper Mist

The Juniper Mist connector integrates with the Juniper Mist cloud platform to bring wireless network infrastructure data into the Mapped graph. It reads device status and connected device metrics from Mist network devices like wireless access points, switches, and gateways. Optionally, it supports real-time webhook notifications for occupancy alerts.

Use Cases

Potential use cases include:

• Network infrastructure visibility: See all Mist wireless access points, switches, and gateways across your portfolio, organized by building and floor.
• Device health monitoring: Track online/offline status of network devices in real time to identify outages or connectivity issues.

Configuration

Auth Requirements

In order to authenticate, the following is required:

• Juniper Mist API Token: An API token with organization or site-level permissions needs to be created from the Juniper Mist Portal. Juniper Mist: Create API Tokens
• Mist Region: Select the cloud region where your Mist organization is hosted (Global, Europe, APAC, or US Government).
• Organization ID: Your Mist organization UUID, found in the Mist dashboard under Organization > Settings.
• Webhook Secret (optional): A shared secret for validating webhook signatures, only needed if webhooks are enabled. Add a Webhook in the Juniper Mist Portal

Place Mappings

The connector associates Mist devices with Mapped places on the Location Mapping tab. The connector fetches all devices from sites you have access to (based on your API token's privileges) and pre-populates the mapping table.

Field	Required	Description
building.siteId	Yes	The Site in your organization
building.name	Yes	Building name
building.address	Yes	Building address
building.refId	Yes	Mist Site UUID
subBuilding.name	No	Sub-building name (e.g., wing or section)
subBuilding.code	No	Sub-building code
floor.name	Yes	Floor name (from Mist map/floor plan)
floor.level	Yes	Numeric floor level
space.name	Yes	Space name
space.code	Yes	Space code
thing.name	Yes	Device name
thing.refId	Yes	Mist device UUID (unique)
thing.context	Yes	Device metadata including type (ap, switch, gateway), serial number, and MAC address

Notes:

• Access points are linked to floors via isLocationOf.
• Switches and gateways are linked to buildings or sub-buildings via isLocationOf.
• Floor information is automatically populated from the device's assigned Mist map when available.

Advanced Options

• Enable Webhooks: Enable real-time webhook notifications from Mist. When enabled, the connector registers a webhook with Mist for occupancy alert events. The default is disabled.

Mapped Concepts

Mist API to Mapped Entities

Mist API Model	Mapped Entity	exactType	Description
Site (with sub-building mapping)	SubBuilding	SubBuilding	When a sub-building is specified in the place mapping, the site maps to a sub-building.
Map (floor plan)	Floor	Floor	Mist maps/floor plans are mapped to floors within a building.
Device (type: ap)	WirelessAccessPoint	WirelessAccessPoint	Mist wireless access points, linked to their assigned floor.
Device (type: switch)	Switch	Switch	Mist network switches, linked to their building or sub-building.
Device (type: gateway)	NetworkedDevice	NetworkedDevice	Mist gateways, linked to their building or sub-building.

Relationships:

• Each device has an ExternalIdentity using the device serial number scoped to the organization. Read more on Identities at Mapped.
• Access points are located on floors (Floor.isLocationOf → WirelessAccessPoint).
• Switches and gateways are located in buildings or sub-buildings (Building.isLocationOf → Switch/NetworkedDevice).

Mist API to Mapped Points

Mist Data	Mapped Point	exactType	Datatype	Unit	Description
AP device status	OnOffStatus	OnOffStatus	ENUM	NUM	Access point online/offline status. Values: 0 = disconnected, 1 = connected.
AP connected WLANs ConnectedDevicesCountSensor	ConnectedDevicesCountSensor	INT	NUM	Count of unique WLANs served by the access point.
Switch device status	OnOffStatus	OnOffStatus	JSON	—	Switch status as a JSON object containing the status field.
Gateway device status	OnOffStatus	OnOffStatus	JSON	—	Gateway status as a JSON object containing the status field.

Notes:

• Access point status uses a numeric value map: 0 → "disconnected", 1 → "connected".
• Switch and gateway status is reported as a JSON payload (e.g., {"status": "connected"}).
• Data is polled every 5 minutes.

Sample Code

Query all Buildings with their devices and device locations

Note you'll need the connectorId of your Juniper Mist connector to execute this query. You can find this in the Mapped Console grid view under the Connectors tab.

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
{
  buildings {
    id
    name
    things(filter: {connectedDataSourceId: {eq: "CONPVSTyeYObEQ3RsT9uENiPN"}}) {
      id
      name
      exactType
      identities {
        ... on ExternalIdentity {
          __typename
          value
        }
      }
      hasLocation {
        id
        name
        exactType
      }
    }
  }
}

Query latest Access Point device status time series

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
{
  things(filter: {exactType: {eq: "Wireless_Access_Point"}}) {
    id
    name
    hasPoint {
      id
      name
      exactType
      datatype
      unit {
        id
        name
      }
      valueMap
      series(latest: true) {
        timestamp
        value {
          float64Value
        }
      }
    }
  }
}

Query connected device counts for access points

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
{
  things(filter: {exactType: {eq: "Wireless_Access_Point"}}) {
    id
    name
    exactType
    hasPoint(filter: {exactType: {eq: "Connected_Devices_Count_Sensor"}}) {
      id
      name
      exactType
      datatype
      unit {
        id
        name
      }
      valueMap
      series(latest: true) {
        timestamp
        value {
          int64Value
        }
      }
    }
  }
}

Graph Diagrams

Access Points (linked to Floors)

Switches & Gateways (linked to Buildings)

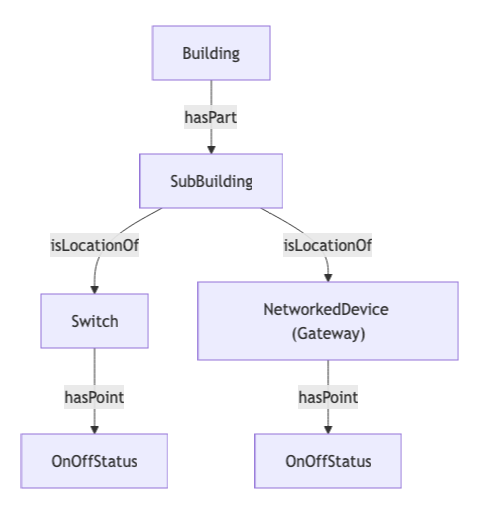

With Sub-Buildings
