Aruba Central Source connects to HPE Aruba Networking Central to sync floor-level WiFi occupancy counts and network device online/offline status into Mapped. The connector provisions floor occupancy zones, creates optional device inventory for selected access points, switches, and gateways, and refreshes both data streams every 5 minutes. Note this connector uses GreenLake / HPE SSO unlike the legacy version.

Use Cases

• Monitor floor occupancy trends using WiFi client counts
• Detect offline network devices that may impact building operations
• Combine occupancy and device health data in one graph for dashboards and workflows

Configuration

Auth Requirements

Field	Required	Description	Where to Find
Base URL	Yes	Aruba Central cluster URL used for API calls	Aruba Central cluster/region for your tenant
Client ID	Yes	OAuth client credential ID	Aruba Central or HPE GreenLake API credential setup
Client Secret	Yes	OAuth client credential secret	Generated with the client ID

The connector authenticates with OAuth2 client credentials against Aruba Central and stores the current access token automatically.

Place Mappings

The Place Mapping step loads sites, buildings, and floors from Aruba Central. Users confirm the hierarchy and add any missing business context before provisioning.

Field	Required	Editable	Description
Building Name	Yes	No	Building name returned by Aruba Central
Building Address	Yes	Yes	Customer-supplied street address for the building
Building Ref ID	Yes	No	Aruba building ID used for device location matching
Aruba Site ID	Yes	No	Stored as building context and used for occupancy/device API filtering
Sub-building Name	No	Yes	Optional subdivision for wings or towers
Sub-building Code	No	Yes	Optional short code for the sub-building
Floor Name	Yes	Yes	Display name for the floor
Floor Level	Yes	Yes	Numeric floor level
Floor Ref ID	Yes	No	Aruba floor ID used by provisioning and polling

Enumerations

After saving place mappings, the Device Status tab devices at the mapped Aruba sites. Users choose which rows to monitor for online/offline status. Each saved selection records the device serial number, device type, site, and any available building/floor location IDs.

Supported device categories are:

• IAP — provisioned as a wireless access point
• SWITCH — provisioned as an ethernet switch
• GATEWAY — provisioned as a generic networked device

Advanced Options

Option	Default	Description
Poll Occupancy	TRUE	Enables or disables floor occupancy polling
Poll Device Status	TRUE	Enables or disables device status polling

Mapped Concepts

API to Mapped Entities

This connector creates a place hierarchy from Aruba Sites/Buildings/Floors, adds one Occupancy Zone per mapped floor, and optionally provisions selected Aruba devices with a status point.

Aruba concept	Mapped entity	exactType	Relationships
Building from site map	Building	Building	Parent place in the hierarchy
Optional sub-building	Building	Building	hasPart from building, isPartOf to building
Floor from site map	Floor	Floor	hasPart from building or sub-building
Virtual floor occupancy area	Zone	OccupancyZone	hasPart from floor
Selected access point	Thing	WirelessAccessPoint	hasLocation to floor or building
Selected switch	Thing	EthernetSwitch	hasLocation to floor or building
Selected gateway	Thing	NetworkedDevice	hasLocation to floor or building

API to Mapped Points

Aruba data	Point location	exactType	Datatype	Unit	Description
/network-services/v1/wifi-clients-locations total count	Floor occupancy zone	OccupancyCountSensor	INT	—	Current WiFi client count for the mapped floor
/network-monitoring/v1/clients failed-device result	Selected device	Point	INT	—	1 when the device is not in the failed list, 0 when it is

Occupancy and device status polls both run every 5 minutes when enabled.

Sample Code

Query Aruba Central devices

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
{
  things(filter: {connectedDataSourceId: {eq: "your-connector-Id"}}) {
    id
    name
    exactType
    mappingKey
    hasLocation {
      ... on Building {
        id
        name
        exactType
      }
      ... on Floor {
        id
        name
        exactType
      }
    }
    hasPoint {
      id
      name
      exactType
      mappingKey
    }
  }
}

Query Aruba Central Occupancy Zones

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
{
  zones(filter: {connectedDataSourceId: {eq: "your-connector-Id"}}) {
    id
    name
    exactType
    mappingKey
    hasPoint {
      id
      name
      exactType
      mappingKey
    }
  }
}

Query Time Series for On Off Status and Occupancy Count Sensors

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
{
  points(filter: {connectedDataSourceId: {eq: "your-connector-Id"}}) {
    id
    name
    exactType
    mappingKey
    isPointOf {
      ... on Zone {
        id
        name
        exactType
        mappingKey
      }
      ... on Thing {
        id
        name
        exactType
        mappingKey
      }
    }
    series(latest: true) {
      timestamp
      value {
        int64Value
      }
    }
  }
}

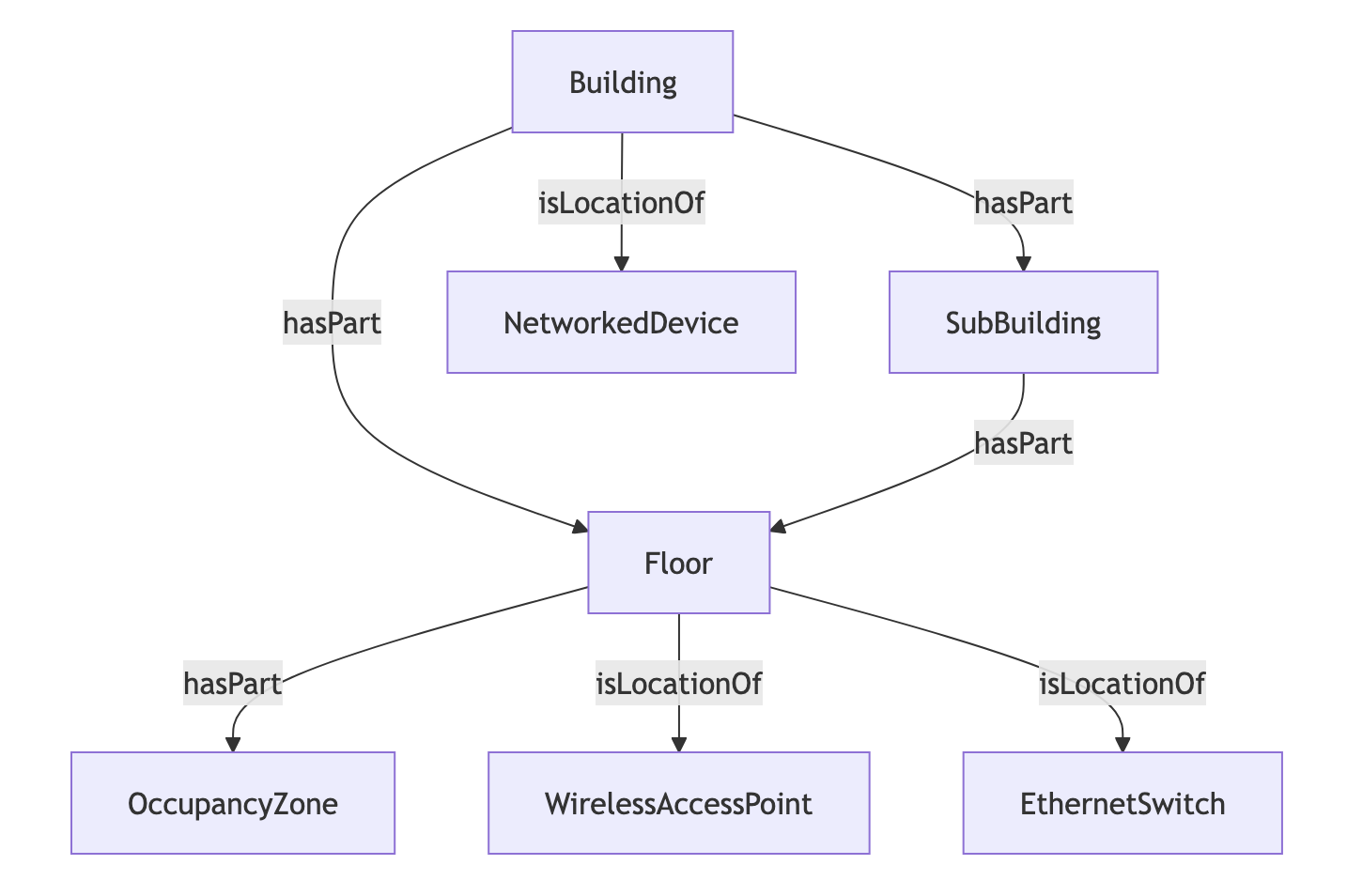

Graph Diagrams
