The Tactic connector ingests workplace room-scheduling data from Tactic into the Mapped graph. It imports your Tactic offices as Buildings and your bookable meeting rooms as Spaces, then continuously polls Tactic for reservations and materializes them as Calendar Events attached to each room's booking calendar.

This gives the Mapped Graph a live, structured view of when and where rooms are booked. This data that can be forwarded downstream (for example, to the Willow Events Destination Connector) to drive energy optimization and space-utilization use cases.

Use Cases

• Occupancy-driven energy optimization: Feed room booking schedules to downstream systems so HVAC and lighting can be pre-conditioned only for rooms that are actually reserved.
• Space utilization analytics: Analyze reservation history per room and building to understand demand, identify under-used spaces, and inform real-estate decisions.
• Unified scheduling view: Combine Tactic room bookings with other building data in the Mapped graph for a single source of truth on space usage.

Configuration

Auth Requirements

The connector authenticates against the Tactic Public API v1 using a static API key (bearer token).

Field	Required	Description
API Key	Yes	A Tactic Public API key. Provided by your Tactic administrator from the Tactic admin console.

Entity Import

This connector uses the Mapped entities framework (not legacy place mappings). Import happens in two stages, each presented as its own step in the configuration UI:

• Offices — Load your Tactic offices and select which ones to import as Buildings.
• Resources — Load meeting rooms and select which ones to import as Spaces. Rooms can optionally be filtered by office. Only rooms of type meeting room are imported.

Each selected entity is reviewed and merged into the Graph, where you can adjust the mapped name (and space code for rooms) before saving.

Poll Settings

Option	Default	Description
Offices to Poll	All	Select which offices are included when polling for reservation events. If no offices are selected, all offices with merged rooms are polled.
Current Events Poll	Enabled	Polls Tactic for new and updated reservations every 30 minutes.
Future Events Poll	Enabled	Polls Tactic for upcoming reservations across a 30-day lookahead, once per day.

Backfill

The Backfill section lets you import historical reservations for a specific date range on demand. Select a start and end date and start the backfill; large ranges are automatically chunked into 7-day windows to respect Tactic API limits. Only one backfill can run at a time. Progress is reported in the connector logs.

Mapped Concepts

API to Mapped Entities

Tactic API Model	Mapped Entity	exactType	Notes
Office	Building	Building	Named from the Tactic office name.
Resource (meeting room)	Space	Space	isPartOf its office Building. Only meeting rooms are imported.
(per room, automatic)	SpaceBookingCalendar	Space_Booking_Calendar	One booking calendar is created per imported room, linked to the room via hasCalendar.
Reservation	CalendarEvent	Calendar_Event	Attached to the room's booking calendar via hasCalendarEvent; hasLocation points to the room.

Relationships

• A Building contains its rooms — each Space isPartOf its Building (inverse: Building.hasPart / Building.spaces).
• Each Space hasCalendar a SpaceBookingCalendar (inverse: SpaceBookingCalendar.isCalendarOf).
• A SpaceBookingCalendar hasCalendarEvent for each reservation.
• Each CalendarEvent hasLocation set to the booked Space, carries startTime / endTime, and holds an external identity of the form urn:tactic:reservation:id:<reservation-id>.

Only reservations in an accepted or cancelled state are processed; pending reservations are ignored. If a reservation is moved to a different room, the event's link to the previous room's calendar is removed on the next merge.

Sample Code

List the buildings and rooms created by this connector

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
{
  connectors(filter: {id: {eq: "your-connector-Id"}}) {
    id
    name
    buildings {
      id
      name
      exactType
      mappingKey
      spaces {
        id
        name
        exactType
        mappingKey
      }
    }
  }
}

Read a room's booking calendar and its events

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
{
  connectors(filter: {id: {eq: "CONV5emwbkMNooPqq4FCfaEGs"}}) {
    spaces {
      id
      name
      exactType
      mappingKey
      isPartOf {
        id
        name
        exactType
      }
      hasCalendar {
        id
        name
        exactType
        mappingKey
        hasCalendarEvent {
          id
          name
          exactType
          mappingKey
          exactType
          startTime
          endTime
        }
      }
    }
  }
}

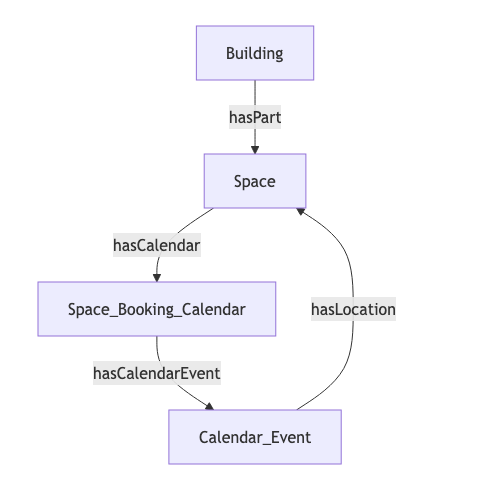

Graph Diagrams
