The Coursedog connector ingests campus room usage from Coursedog into the Mapped graph. It imports your Coursedog buildings as Buildings (or Sub-Buildings) and your rooms as Spaces, then continuously syncs room bookings and materializes them as Calendar Events on each room's booking calendar.

Coursedog exposes room usage through two unrelated products, and this connector reads both:

• the class schedule — course sections with recurring meeting patterns, which is the bulk of room usage on a campus; and
• event bookings — the event-management product's room reservations (guest speakers, banquets, performances), including their setup and teardown blocks.

This gives the Mapped Graph a live, structured view of when and where campus rooms are in use — data that can be forwarded downstream (for example, to the Willow Events Destination Connector) to drive energy optimization and space-utilization use cases.

Use Cases

• Occupancy-driven energy optimization: Feed the class and event schedule to downstream systems so HVAC and lighting condition only the rooms that are actually in use, including the setup window before an event starts.
• *Space utilization analytics: Analyze scheduled usage per room and building to understand demand, identify under-used classrooms, and inform capital planning.
• *Unified scheduling view: Combine the registrar's class schedule with non-academic bookings and the rest of your building data in one graph.

Configuration

Auth Requirements

The connector authenticates with an integration user's email and password, which it exchanges for a session token on every run. A read-only Coursedog API account is sufficient — the connector never writes.

Field	Required	Description
Environment	Yes	Production (app.coursedog.com) or Staging (staging.coursedog.com). Coursedog tenants are provisioned per environment, so pick the one your account exists on.
School ID	Yes	Your Coursedog school identifier, e.g. tcu_peoplesoft. It appears in the path of nearly every API call.
Integration User Email	Yes	The email of the API user your Coursedog administrator created for Mapped.
Password	Yes	That user's password.

Saving this step verifies both the credentials and the school ID before storing anything: a valid login against the wrong school authenticates fine but would return no data.

Note: Coursedog invalidates a session token whenever a new session is created with the same credentials — including someone signing in through the browser. The connector therefore mints a fresh token per run rather than caching one, which is what makes a shared service account safe to use.

Campus Timezone

Coursedog stores class and event times as local wall-clock with no timezone attached. Set the campus timezone here so bookings land at the right instant; without it every event would be off by hours.

Institutions spanning multiple timezones can add per-campus overrides via the campusTimezones config field, keyed by the room's Coursedog campus code (e.g. TCUMAIN). A room whose campus has no override falls back to the connector-level timezone.

Entity Import

This connector uses the Mapped entities framework (not legacy place mappings). Places are imported top-down in three steps, each its own step in the configuration UI. Read more on setting merge rules for updating entities in bulk.

Buildings

Load your Coursedog buildings and select which to import. Coursedog has no Site concept, so you choose how each building links into the org graph by filling in one of two parent columns:

• Site — imports it as a top-level Building under the selected org Site (the default shape); or
• Parent Building — imports it as a Sub-Building nested under an existing org Building (e.g. your authoritative CMMS/CAFM building).

If both are filled in, the Parent Building wins. A postal address is composed from the Coursedog address fields. The sub-building code defaults to Coursedog's building id, which is the registrar's building code (e.g. NEEL) — the same code your authoritative place source is likely to publish, making it the cross-connector anchor.

Floors

Coursedog does not record floors at all, so these are derived from room numbering: "NEEL 1219" implies floor 1, "RIC 035" implies the ground floor (level 0). The step collapses the rooms of the buildings you selected into the distinct floors they imply, showing how many rooms are behind each one so you can tell a real floor from a stray room number.

Review the levels, correct any that are wrong, and save. Levels are zero-based, matching Mapped: the ground floor is 0.

Note: the derivation reads only the leading digit, so it does not try to guess for buildings taller than nine floors — "1001" could be floor 1 or floor 10. Fix those in the grid.

Each floor carries a building-scoped level identity, which is what resolves it onto the floor you already have in Mapped at that level rather than creating a parallel one.

Rooms

Load rooms as Spaces for the buildings you selected. Each room is pre-wired to the floor its number implies, when that floor was merged in the previous step. Rooms that are named rather than numbered ("ATRIUM1", "Arnold Hall Demo Room") imply no floor and fall back to their building — on a live tenant that is about a quarter of them, which is why the Floor column is optional and the Building column is required.

The space code defaults to the room number with the building prefix stripped (BAI 101 in building BAI → 101), since that bare number is what a CMMS/CAFM typically publishes. Named rooms are left intact rather than mangled.

Note: A space code is only written as an identity when the room's parent is a Floor (codes are scoped to a floor). A room that fell back to its building merges without the space-code anchor.

Saving a room is what creates its booking calendar. Only imported rooms get one, and only rooms with a calendar receive events — see Booking calendars below.

Sync Settings

Option	Default	Description
Data Sources	All three	Which Coursedog data to sync: Class schedule (course sections), Event bookings (event management), Final exams (exam meetings declared on sections).
Lookahead (days)	30	How far ahead the daily sync materializes bookings. Class meeting patterns are expanded one event per meeting day, so raising this multiplies the events written per run.

Additional config-only options:

Field	Default	Description
currentWindowDays	7	Days either side of now that the 30-minute poll refreshes event bookings.
includeSetupTeardown	true	Whether to sync the setup/teardown blocks Coursedog books around an event. They occupy the room, so they are included by default.
minRequestIntervalMs	250	Minimum spacing between API requests.
maxRetries	6	Retry attempts on a 429 or transient upstream error, with exponential backoff honoring Retry-After.

Polling Schedule

Function	Interval	What it syncs
Current Events	Every 30 minutes	Event bookings only, for a window of now ± 7 days.
Future Events	Once per day	The full sync: class schedule, event bookings and exams, from yesterday through the lookahead window.

The 30-minute poll deliberately skips the class schedule. Coursedog's sections endpoint has no modified-since filter, so including it would mean re-downloading an entire term (tens of megabytes) every half hour. Classes change on registrar timescales, so the daily poll owns them, while event bookings — which are date-windowed and field-narrowable — stay fresh at 30-minute resolution.

Backfill

The Backfill section imports historical room bookings for a specific date range on demand, pulling both sources so the range comes back complete. Only one backfill runs at a time. A long range covers more academic terms, and each term is a full download of its course sections, so expect a multi-minute run for a range spanning a year. Progress is reported in the connector logs.

Mapped Concepts

API to Mapped Entities

Coursedog API Model	Mapped Entity	exactType	Notes
Building	Building or Sub_Building	Building / Sub_Building	Named from the Coursedog display name. Imported as a Building isPartOf a user-selected org Site, or (when a Parent Building is chosen) as a Sub_Building isPartOf that Building. Carries a postal address when one is provided.
Room	Space	Space	isPartOf a user-selected Floor when set, otherwise isPartOf its Building/Sub_Building.
(per room, automatic)	SpaceBookingCalendar	Space_Booking_Calendar	One booking calendar per imported room, linked via hasCalendar.
Section meeting pattern (per meeting day)	CalendarEvent	Calendar_Event	One event per date the pattern meets.
Section exam meeting	CalendarEvent	Calendar_Event	Single-date, often in a different room than the class.
Event meeting	CalendarEvent	Calendar_Event	Already one record per occurrence in Coursedog.

Relationships:

• A building has exactly one place parent, chosen in the grid: a Building isPartOf the org Site (inverse: Site.hasPart / Site.buildings), or a Sub_Building isPartOf a selected org Building (inverse: Building.hasPart / Building.subBuildings). A Sub_Building may additionally carry a SubBuildingCode identity, scoped to its parent Building, as a cross-connector anchor.
• A Floor isPartOf its Building/Sub_Building (inverse: Building.hasPart / Building.floors), and carries a FloorLevelIdentity scoped to that building.
• A room Space has exactly one structural parent: it isPartOf its Floor when one was derived or selected (inverse: Floor.hasPart / Floor.spaces), otherwise its Building/Sub_Building directly.
• Each room Space carries up to two identities under identities:
  • A space code (SpaceCode), scoped to the parent floor, when a code is set and the room's parent is a floor. Another connector publishing the same code under the same floor resolves onto the same Space vertex rather than creating a parallel one.
  • An external identity (ExternalIdentity), scoped to this connector, holding the Coursedog room id for continuity.
• Each Space hasCalendar a SpaceBookingCalendar (inverse: SpaceBookingCalendar.isCalendarOf).
• A SpaceBookingCalendar hasCalendarEvent for each booking.
• Each CalendarEvent hasLocation the room it occupies, and carries an org-scoped ExternalIdentity.

CalendarEvent fields

GraphQL Field	Class occurrence	Event booking
name	ACCT20353-080 Fundamentals of Accounting	The parent event's name, prefixed **Setup: ** / **Teardown: ** for those blocks
description	Section type, delivery mode, topic, enrollment	Event type, organization, department, expected attendance, notes
startTime / endTime	The occurrence in UTC, converted from campus-local	The occurrence in UTC, converted from campus-local
callInfo	The section's status (Active, …)	The booking's status (Confirmed, Pending, …)
mappingKey	calendar_event/section/{sectionId}/{timeId}/{date}	calendar_event/meeting/{meetingId}
identities	urn:coursedog:section:id:{sectionId}/{timeId}/{date} (scope: ORG)	urn:coursedog:meeting:id:{meetingId} (scope: ORG)

Sample Code

Query rooms with their calendars and events

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
{
  spaces {
    id
    name
    exactType
    mappingKey
    hasCalendar {
      ... on SpaceBookingCalendar {
        id
        name
        exactType
        mappingKey
        hasCalendarEvent {
          id
          name
          exactType
          mappingKey
          description
          startTime
          endTime
        }
      }
    }
  }
}

Query calendar events with location and identity

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
{
  calendarEvents {
    id
    name
    startTime
    endTime
    mappingKey
    hasLocation {
      ... on Space {
        id
        name
        exactType
        mappingKey
      }
    }
    identities {
      ... on ExternalIdentity {
        __typename
        value
        scope
      }
    }
  }
}

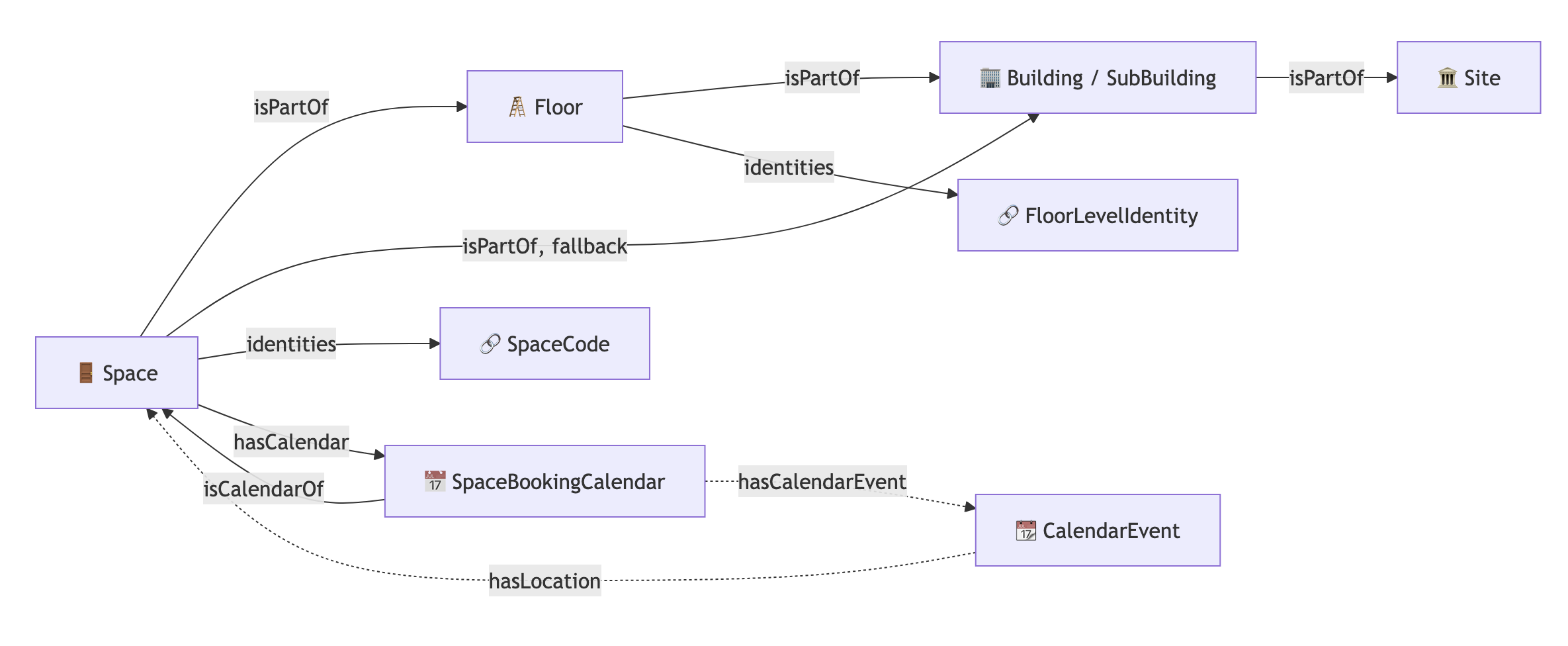

Graph Diagrams
