The Crestron XiO connector links your Crestron equipment to Mapped, enabling room occupancy insights based on data from your Crestron system.

Use Cases

• Monitor room occupancy status from Crestron touch panels in near real time.
• Use occupancy data in automations, dashboards, and analytics workflows.
• Relate panel occupancy telemetry to building, floor, and space context in the graph.

Configuration

Auth Requirements

Provide credentials for your Crestron XiO Cloud account.

Field	Required	Description	Where to find it
API Key	Yes	XiO subscription key used to authenticate API requests	Crestron XiO Cloud developer/admin portal
Account ID	Yes	XiO account identifier for device and status queries	Crestron XiO Cloud account settings

Place Mappings

Use the mapping table to select and map touch panels into your place hierarchy.

Mapping Field	Required	Notes
building.siteId	Yes	Building site identifier
building.name	Yes	Building display name
building.address	Yes	Building address
floor.level	Yes	Numeric floor level
floor.name	No	Optional floor name
space.name	Yes	Space display name
space.code	No	Optional space code
thing.name	Yes	Device name
thing.refId	Yes	Unique source device identifier

Only devices categorized as touch panels are presented for mapping.

Advanced Options

This may be enabled via the JSON mode editor.

Option	Default	Description
addOccupancyZones	Disabled (FALSE)	When enabled, creates occupancy zone entities for mapped locations and links devices as serving those zones.

Mapped Concepts

API to Mapped Entities

Source Model	Mapped Entity	Exact Type Notes	Relationships
XiO device (TouchPanel)	Thing	Uses connector defaults for a device entity (no custom exactType override)	hasLocation to mapped Place (Space, Floor, or Building)
Mapped location context (optional mode)	Place (Zone)	Uses connector defaults for occupancy zone entity (no custom exactType override)	Place hasPart Zone, Thing serves Zone
XiO device identity	Identity	External identity in org scope	Thing identities

API to Mapped Points

Source Property	Mapped Point	Datatype	Unit	Description
device.occupancy-status	Occupancy status point per mapped device	INT	NUM	Encodes occupancy state as 0 (Vacant), 1 (Occupied), 2 (Null/unknown)

Enumerations

The occupancy point uses these status mappings:

• 0 = VACANT
• 1 = OCCUPIED
• 2 = NULL (used when status is null or unexpected)

Sample Code

Query latest occupancy time series

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
{
  points(filter: {connectedDataSourceId: {eq: "your-connector-Id"}}) {
    id
    name
    exactType
    datatype
    mappingKey
    unit {
      id
    }
    valueMap
    series(latest: true) {
      timestamp
      value {
        int64Value
      }
    }
  }
}

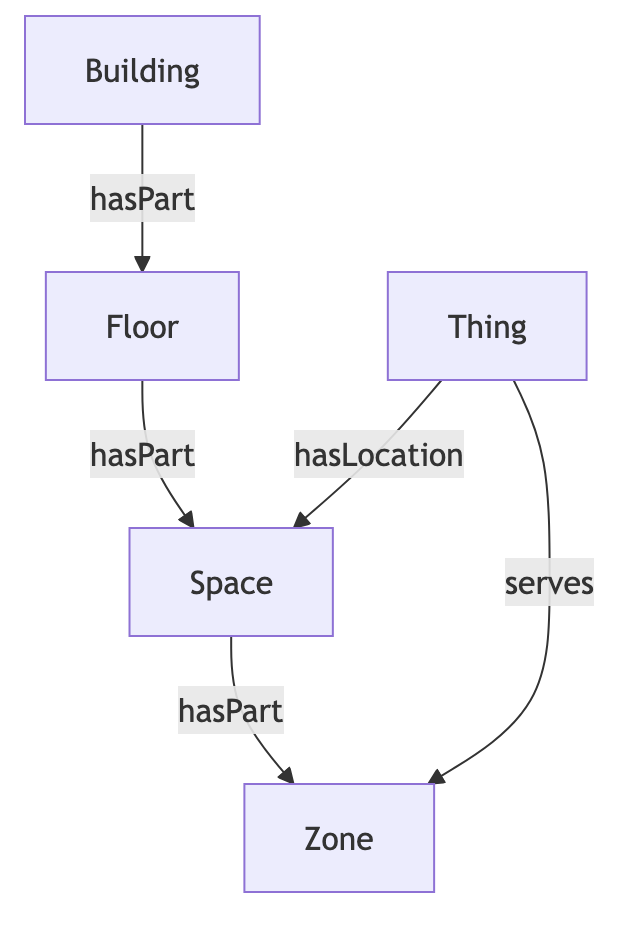

Graph Shape
