The EnergyCAP connector integrates with the EnergyCAP Wattics API to sync energy, gas, and water meter data into the Mapped Graph. This enriches the building with utility-grade metering data, enabling analysis across energy, sustainability, and cost domains.

Use Cases

• Track electricity, natural gas, and water consumption per meter over time to support sustainability reporting and energy benchmarking.
• Monitor real-time electrical demand (active, reactive, and apparent power) to detect anomalies and optimize load management.
• Correlate utility costs per interval against occupancy and operational schedules to identify savings opportunities.

Configuration

Auth Requirements

This connector requires the following credentials:

Field	Required	Description
API Key	✅ Yes	The API key from your EnergyCAP Wattics account. Found in your Wattics account settings or provided by your EnergyCAP administrator.

You can read more with EnergyCAP Developer documentation.

Polling Options

After entering your API key you must select at least one type of data to poll. These options control which data the connector collects.

Option	Description
Poll Consumption Data	Enables collection of interval consumption data (kWh for electricity, ft³ for gas, gallons for water) per meter.
Poll Cost Data	Enables collection of interval utility cost data (USD) per meter.
Poll Raw Data	Enables collection of real-time electrical interval data (active, reactive, and apparent power in watts). Only applies to electricity meters.

At least one option must be selected before meter mappings can be configured.

Place Mappings

After selecting polling options, configure which meters to sync by selecting them from the source system. The connector fetches all meters visible to your API key and presents them for selection.

Field	Required	Description
Building Site ID	Yes	The unique site ID from EnergyCAP that corresponds to the building.
Building Ref ID	Yes	An external reference ID for the building.
Building Name	Yes	The display name of the building as it appears in EnergyCAP.
Building Address	Yes	The address of the building.
Meter Name	Yes	The display name for the meter as it appears in EnergyCAP.
Meter Ref ID	Yes (unique)	The unique meter ID from EnergyCAP. Must be unique across all configured mappings.
Meter Context	Optional	Auto-populated from the source system with meter type (electricity, gas, or water) and reference data.

Only electricity, gas, and water meter types are supported. Other meter types (e.g. thermal) are excluded from the selection list.

Mapped Concepts

API to Mapped Entities

The connector transforms EnergyCAP meters into Mapped Thing entities with meter-specific exactType values. Each meter is linked to its building and configured with one or more timeseries points depending on the polling options enabled.

EnergyCAP Meter Type	Mapped Entity exactType	Description
Electricity	ElectricalMeter	An electrical utility meter. Created for both raw data and cost/consumption polls.
Gas	GasMeter	A natural gas utility meter. Created for cost/consumption polls only.
Water	WaterMeter	A water utility meter. Created for cost/consumption polls only.

Each meter entity:

• Is linked to its building via serves and hasLocation relationships.
• Carries an external identity (identities) scoped to the organization, in the form urn:energycap:meter:id:<meterId>.
• Has one or more Point entities attached via hasPoint, depending on the polling options configured.

API to Mapped Points

API to Mapped Points

The connector creates timeseries points on each meter entity based on enabled polling options. The points differ by meter type.

Electricity Meters — Cost & Consumption Poll

Point Name	exactType	Datatype	Unit	Description
Energy Consumption	EnergySensor	DOUBLE	KiloW-HR	Electricity consumed per interval (kWh).
Energy Cost	CostEstimatePerInterval	DOUBLE	CCY_USD	Utility cost for electricity per interval (USD).

Gas Meters — Cost & Consumption Poll

Point Name	exactType	Datatype	Unit	Description
Gas Consumption	NaturalGasUsageSensor	DOUBLE	FT3	Natural gas consumed per interval (cubic feet).
Gas Cost	CostEstimatePerInterval	DOUBLE	CCY_USD	Utility cost for gas per interval (USD).

Water Meters — Cost & Consumption Poll

Point Name	exactType	Datatype	Unit	Description
Water Consumption	WaterUsageSensor	DOUBLE	GAL_US	Water consumed per interval (US gallons).
Water Cost	CostEstimatePerInterval	DOUBLE	CCY_USD	Utility cost for water per interval (USD).

Electricity Meters — Raw Data Poll

Point Name	exactType	Datatype	Unit	Description
Active Power	ActivePowerSensor	INT	W	Total active power reported by the electrical meter (watts).
Reactive Power	ReactivePowerSensor	INT	W	Total reactive power reported by the electrical meter (watts).
Apparent Power	ApparentPowerSensor	INT	W	Total apparent power reported by the electrical meter (watts).

Note: Raw Data polling only applies to electricity meters. Gas and water meters do not expose interval power data via the EnergyCAP API; their data is available only through the consumption and cost poll.

Sample Code

Get the latest trends for all meters

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
{
  points(filter: {connectedDataSourceId: {eq: "your-connector-Id"}}) {
    id
    name
    exactType
    mappingKey
    unit {
      id
    }
    series(latest: true) {
      timestamp
      value {
        int64Value
      }
    }
  }
}

Get hourly energy consumption for all electrical meters over a date range

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
{
  things(
    filter: {connectedDataSourceId: {eq: "your-connector-Id"}, exactType: {eq: "Electrical_Meter"}}
  ) {
    id
    name
    exactType
    mappingKey
    hasPoint {
      id
      name
      exactType
      mappingKey
      aggregation(
        startTime: "2026-07-27T00:00:00Z"
        endTime: "2026-07-28T00:00:00Z"
        period: HOUR
      ) {
        timestamp
        sum
        avg
        min
        max
        count
      }
    }
  }
}

Get active power timeseries for an electrical meter

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
{
  points(
    filter: {connectedDataSourceId: {eq: "your-connector-Id"}, exactType: {eq: "Active_Power_Sensor"}}
  ) {
    id
    name
    exactType
    mappingKey
    unit {
      id
    }
    series(latest: true) {
      timestamp
      value {
        int64Value
      }
    }
  }
}

Get utility cost data for all meters

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
{
  points(
    filter: {connectedDataSourceId: {eq: "your-connector-Id"}, exactType: {eq: "Cost_Estimate_Per_Interval"}}
  ) {
    id
    name
    exactType
    unit {
      id
    }
    mappingKey
    isPointOf {
      ... on Thing {
        id
        name
        exactType
        mappingKey
      }
    }
    series(latest: true) {
      timestamp
      value {
        int64Value
      }
    }
  }
}

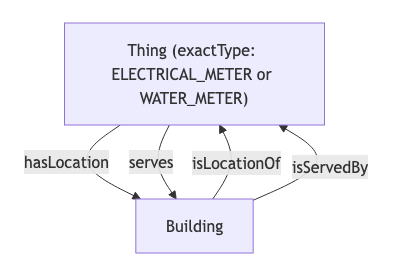

Graph Shape

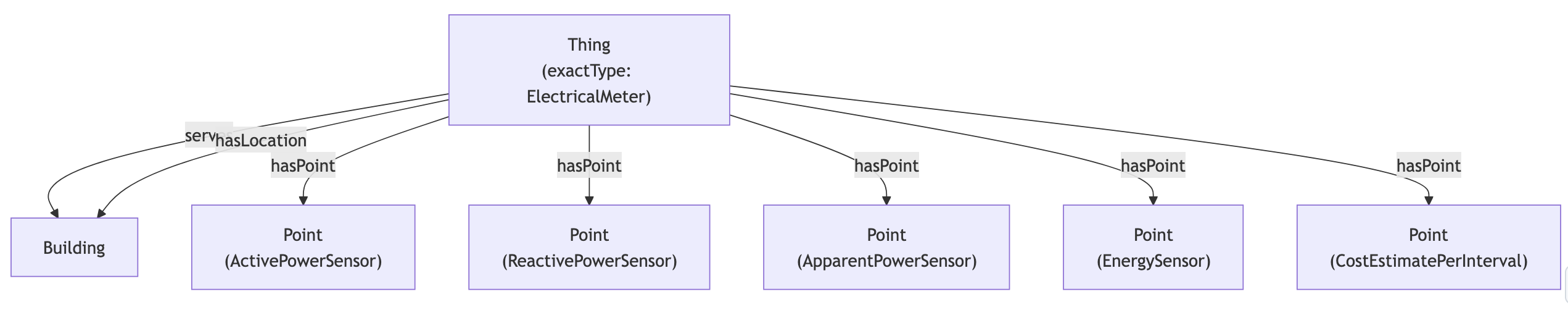

Electricity Meter

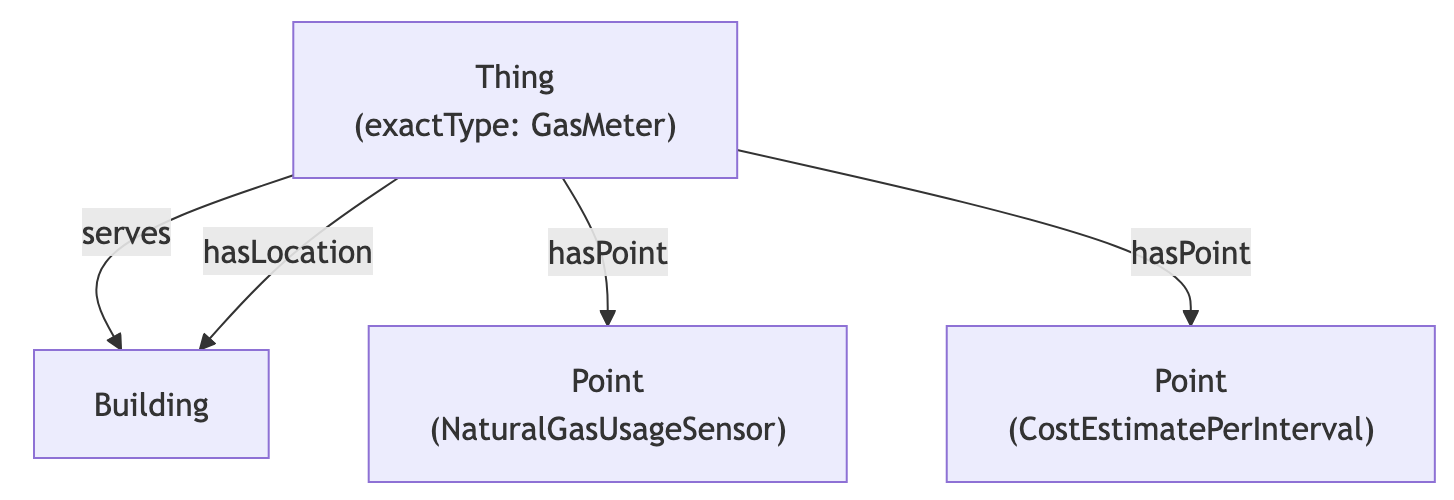

Gas Meter

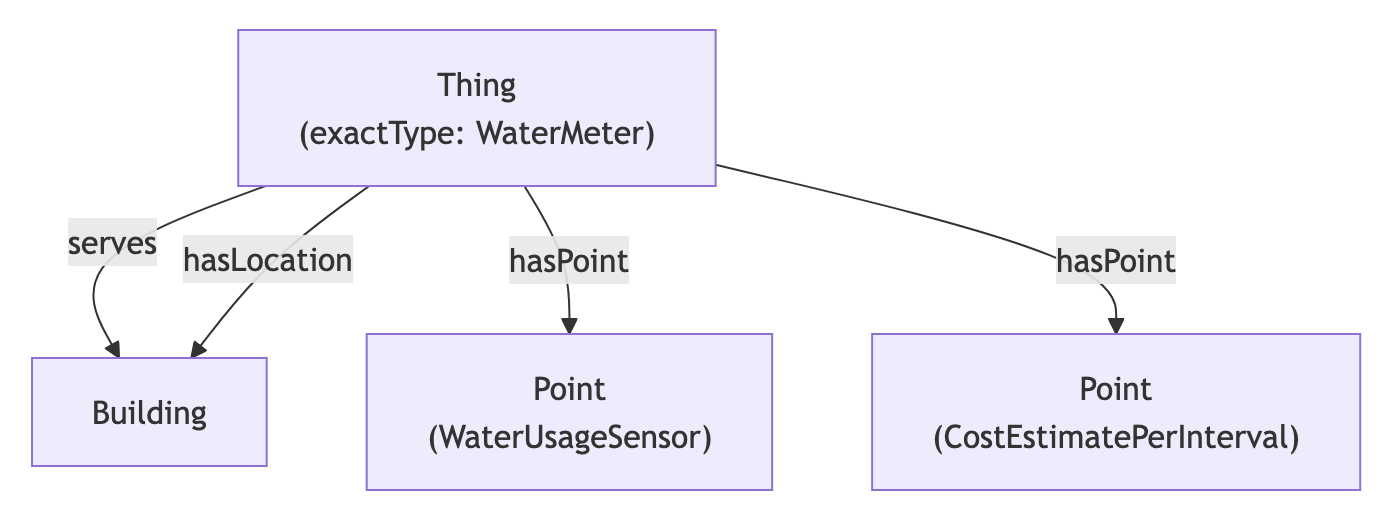

Water Meter
