The Cisco Spaces connector streams occupancy counts from Cisco Spaces into Mapped. It maps Cisco building and floor locations into the graph, creates virtual occupancy sensing devices and occupancy zones where Cisco provides coverage-area events, and writes people-count time series for downstream analytics and dashboards.

Use Cases

• Monitor live occupancy at the building, floor, or coverage-area level from Cisco Spaces events
• Analyze historical people-count trends for space utilization and capacity planning
• Relate Cisco Spaces occupancy data to other Mapped entities for automation and reporting

Configuration

Auth Requirements

The connector is activated with a Cisco Spaces Activation Token. During setup, the connector exchanges that token for the tenant-specific API key and base URL it uses afterward.

Field	Required	Description	Where to Find
Activation Token	Yes	Token used to activate the Cisco Spaces app for a single tenant	Cisco Spaces partner app activation flow for your tenant

After activation, the connector stores the generated API key securely and does not require the user to enter it manually.

Place Mappings

The place mapping table associates Cisco Spaces locations with the Mapped place hierarchy. Building fields are required. Floor fields are optional, so you can map either building-level totals or floor-level/zone-level occupancy.

Field	Required	Description
building.siteId	Yes	Mapped site identifier for the building
building.address	Yes	Building address shown in the Mapped graph
building.refId	Yes	Cisco Spaces building location ID
building.name	Yes	Building name
floor.name	No	Floor display name
floor.level	No	Floor number stored as a zero-indexed level in Mapped
floor.refId	No	Cisco Spaces floor location ID

Mapped Concepts

The connector consumes Cisco Spaces DEVICE_COUNT events and turns them into place-aware occupancy entities and time series. The resulting graph shape depends on whether Cisco reports occupancy for a building, a floor, or a coverage area within a floor.

API to Mapped

Cisco Spaces source	Mapped entity	exactType	Description
Building location	Building	Building	Parent place in the mapped hierarchy
Floor location	Floor	Floor	Child place beneath a building
Coverage area / zone location	Zone	OCCUPANCY_ZONE	Occupancy zone created when Cisco sends zone-level events
Virtual occupancy sensor for a building or floor	Thing	OCCUPANCY_SENSING_DEVICE	Virtual device located on the parent building or floor

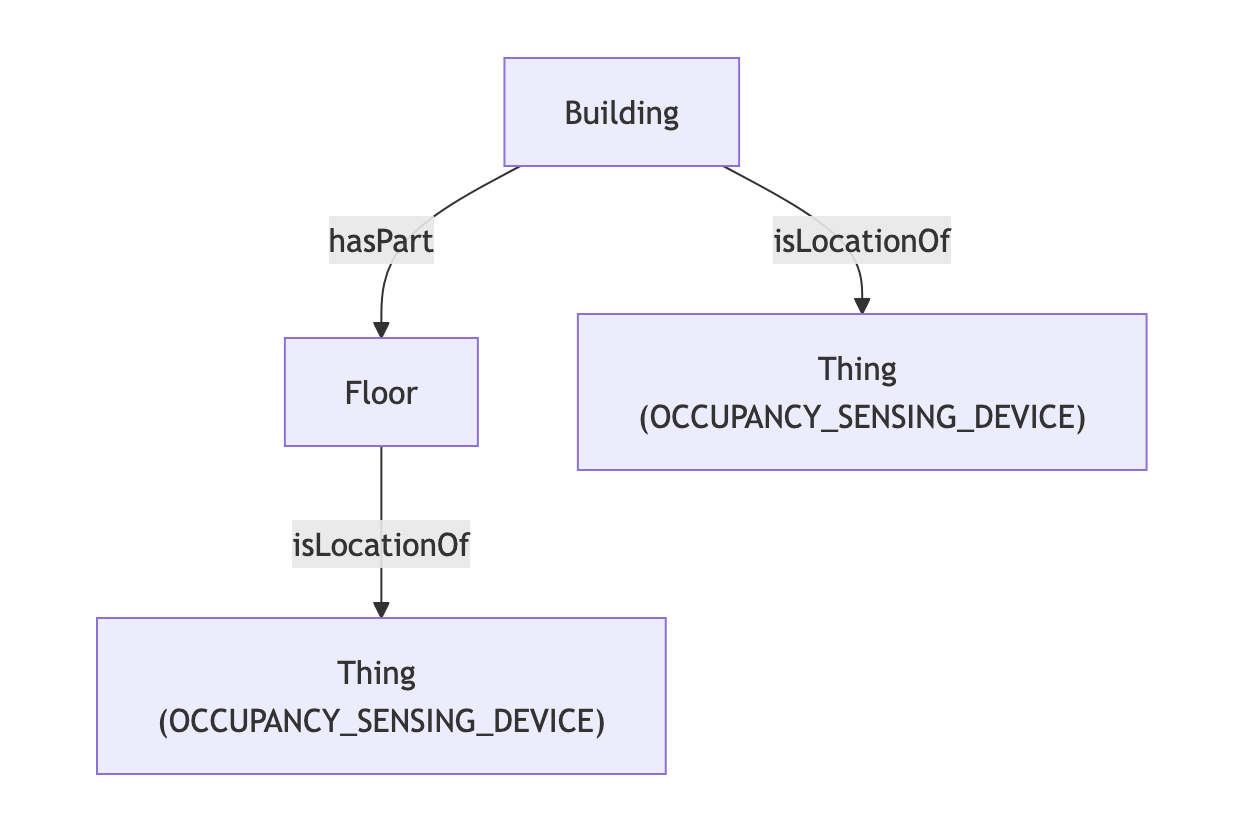

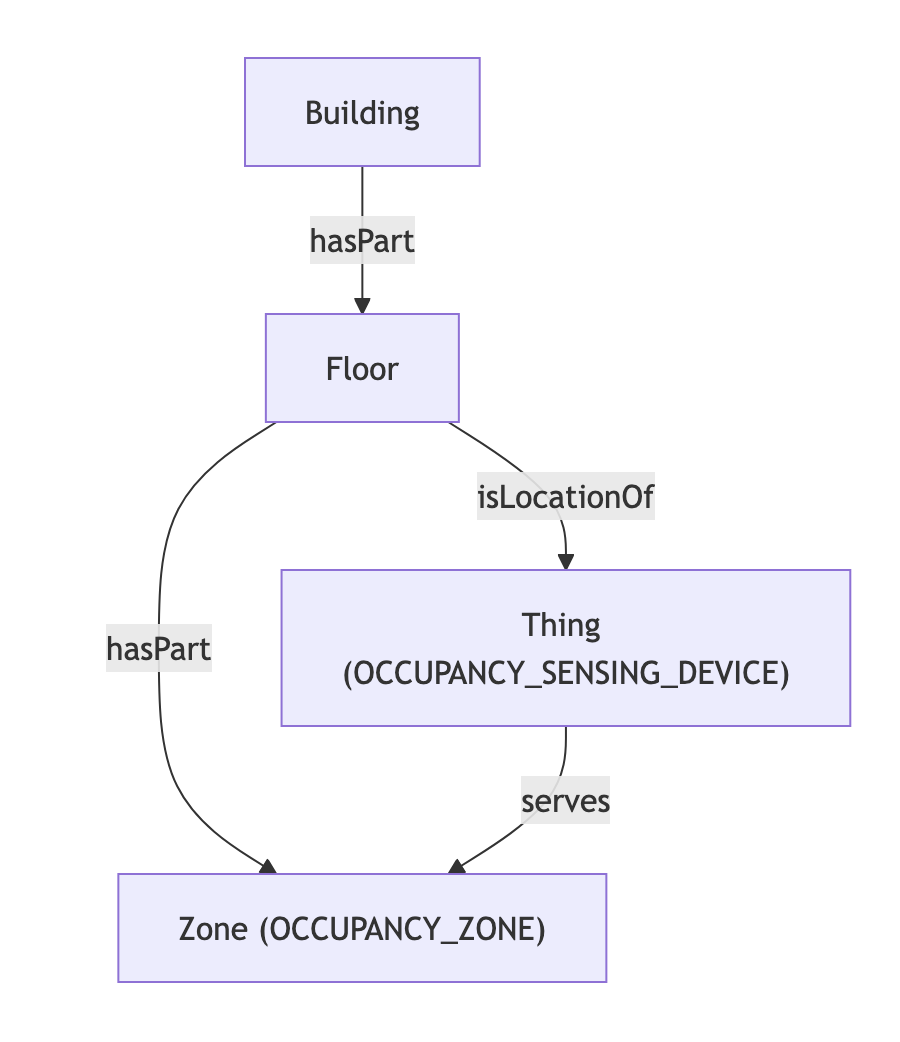

Relationship summary

• Floors belong to buildings through hasPart
• Coverage areas belong to their parent building or floor through hasPart
• Virtual occupancy sensing devices are attached to their parent building or floor through isLocationOf
• When coverage areas exist, the virtual occupancy sensing device serves those zones
• Cisco location IDs are stored in identities so connector-created entities can be matched back to Cisco Spaces

API to Mapped Points

Cisco Spaces data	Mapped point	exactType	Parent entity	Datatype	Unit	Description
Building or floor device count	Point	PEOPLE_COUNT_SENSOR	Building or Floor	INT	NUM	People count written directly on the parent place when Cisco emits non-zone totals
Coverage-area device count	Point	PEOPLE_COUNT_SENSOR	Zone	INT	NUM	People count for an occupancy zone / coverage area
Mirrored device-count stream	Point	PEOPLE_COUNT_SENSOR	Thing (OCCUPANCY_SENSING_DEVICE)	INT	NUM	Same Cisco Spaces occupancy event stream attached to the virtual occupancy sensing device

Occupancy values are streamed continuously from Cisco Spaces rather than collected by a scheduled telemetry poll. The connector poll cycle runs every 150 seconds to maintain connector health reporting and reconnection behavior.

Sample Code

Query Cisco Spaces virtual occupancy sensing devices and their served Zones

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
{
  things(filter: {connectedDataSourceId: {eq: "your-connector-id"}}) {
    id
    name
    exactType
    mappingKey
    isVirtual
    hasLocation {
      id
      name
      exactType
    }
    serves {
      ... on Zone {
        id
        name
        exactType
        mappingKey
      }
    }
    hasPoint {
      id
      name
      exactType
      mappingKey
      datatype
      unit {
        id
      }
    }
  }
}

Get the latest people-count value for all Cisco Spaces Points

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
{
  points(filter: {connectedDataSourceId: {eq: "your-connector-Id"}}) {
    id
    name
    exactType
    mappingKey
    datatype
    unit {
      id
    }
    isPointOf {
      ... on Zone {
        id
        name
        exactType
        mappingKey
      }
      ... on Thing {
        id
        name
        exactType
        mappingKey
      }
    }
    series(latest: true) {
      timestamp
      value {
        float64Value
      }
    }
  }
}

Graph Diagrams
