The Nuvolo Destination connector sends Mapped work orders and assets into Nuvolo CMMS. It polls the Mapped graph every 2 minutes for eligible work orders, supports on-demand asset sync, and can backfill historical work orders into Nuvolo for selected buildings.

Use Cases

• Route Mapped work orders into Nuvolo: Forward corrective-maintenance work orders from Mapped into Nuvolo for execution by facilities teams.
• Push asset records to Nuvolo on demand: Publish Mapped assets for selected buildings into Nuvolo device records.
• Support staged cutovers and migrations: Use date-range or ID-based backfill to load historical work orders without waiting for the normal poll cycle.

Configuration

Auth Requirements

Field	Required	Description	Where to Find
Base URL	Yes	Your Nuvolo instance base URL	Your Nuvolo administrator (for example https://your-instance.service-now.com)
Client ID	Yes	OAuth client ID used for Nuvolo API access	Nuvolo / ServiceNow application registration or integration setup
Client Secret	Yes	OAuth client secret	Nuvolo / ServiceNow application registration or integration setup
Username	Yes	Nuvolo username with permission to create and update work orders and devices	Nuvolo administrator
Password	Yes	Password for the API user	Nuvolo administrator

Place Mappings

This destination uses building scope selection to decide which Work Orders should be published.

Setting	Required	Description
Selected Buildings (Workorder Sync Settings)	Yes	Buildings whose related corrective-maintenance work orders are eligible for regular polling and publish
Selected Buildings (Asset Sync action)	Yes, per run	Buildings that scope each manual asset sync
Selected Buildings (Workorder Backfill action)	Yes, per run	Buildings that scope each manual work order backfill

Records outside the selected buildings are skipped.

Workorder Sync Settings

On this tab, the Buildings in scope must be selected, identifying keys must be configured, and enum values can be mapped from source to destination values.

Option	Required	Description
Workorder - Sync Token Key	Yes	Nuvolo Work Order field key used to store the connector's tracking identity for synced Work Orders
Workorder - Custom Name Key	Yes	Nuvolo Work Order field key used to store a human-readable external reference alongside the Work Order name

Mapping	Purpose
Status	Maps Mapped jobStatus values to Nuvolo Work Order states
SubStatus	Maps Mapped jobSubStatus values to Nuvolo sub-status values
Type	Maps Mapped jobType values to Nuvolo Work Order types
RequestType	Maps Mapped sector values to Nuvolo request types
Service	Maps Mapped problemDescription values to Nuvolo services needed

Important notes:

• Only Work Orders mapped to Nuvolo's Corrective Maintenance Work Order type are published.
• Work Order backfill uses the same mappings and the same eligibility rules as the regular poll.

Asset Sync Settings

On this tab, an on-demand asset sync can be executed for buildings selected by date, or for specific Nuvolo asset Ids.

Option	Required	Description
Asset - Sync Token Key	Yes	Nuvolo asset field key used to store the connector's tracking identity for synced assets
Asset - Reference URL Key	Yes	Nuvolo asset field key that receives the asset's reference URL from Mapped

Asset type mappings can also be configured.

Mapping	Purpose
AssetType	Maps Mapped exactType values to Nuvolo asset types
OwningDepartments	Maps the asset's responsible group to a Nuvolo department

If manufacturer or model records do not already exist in Nuvolo, the connector can create matching manufacturer and model records before publishing the asset.

Workorder Backfill

Use this tab to re-publish Work Orders from the Mapped Graph to the Nuvolo CMMS, by date range or by Mapped Work Order Id.

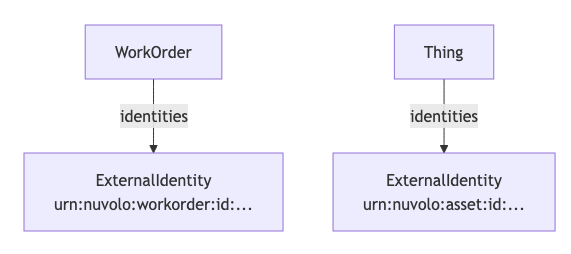

Mapped Concepts

API to Mapped Entities

Mapped Entity	Nuvolo Record	What the connector changes in Mapped
WorkOrder	x_nuvo_eam_facilities_work_orders	Adds a Nuvolo Work Order identity after a successful publish
Thing	x_nuvo_eam_facilities_devices	Adds a Nuvolo asset identity after a successful asset sync

Requirements for Work Orders to sync

• Work orders must relate to the selected buildings and must have jobType value Corrective Maintenance.
• Assets must have a location that resolves to one of the selected buildings.
• The connector uses the stored Nuvolo identities to avoid duplicate creates on later syncs.

Sample Code

Query Work Orders

Read more about how to query Work Orders in the Mapped Graph.

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
{
  workOrders(filter: {connectedDataSourceId: {eq: "your-connector-Id"}}) {
    id
    name
    mappingKey
    summary
    description
    jobStatus
    jobSubStatus
    jobPriority
    jobType
    sector
    dueDate
    dateClosed
    externalDateCreated
    externalDateUpdated
    problemDescription
    resolutionDescription
    isReportedBy {
      name
      emails {
        address
      }
    }
    isCreatedBy {
      name
      emails {
        address
      }
    }
    isClosedBy {
      name
      emails {
        address
      }
    }
    hasAssignee {
      name
      emails {
        address
      }
    }
    hasAssignedGroup {
      name
      hasMember {
        name
      }
    }
    relatesTo {
      __typename
      ... on Building {
        id
        name
      }
      ... on Floor {
        id
        name
        level
      }
      ... on Space {
        id
        name
        exactType
      }
      ... on Thing {
        id
        name
        exactType
      }
    }
    identities {
      __typename
      ... on ExternalIdentity {
        value
        scope
      }
    }
  }
}

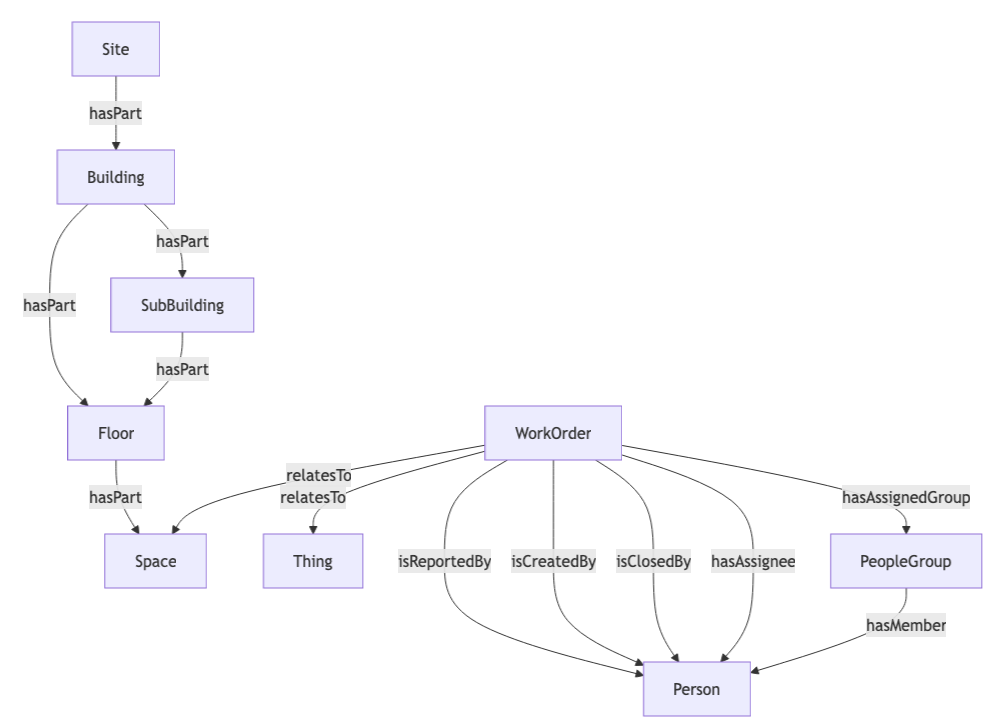

Graph Diagrams
